SunTouch WarmWire Electric Radiant Floor Heating Kit with Connect Plus Programmable Wi-Fi Thermostat, Kiesel OkaQuiet Uncoupling Sheets, Instalation Tools

Product Features:

• Complete Electric Radiant Floor Heating Kit designed for use with and compatible with SunTouch WarmWire: Indoor heated floor system with WiFi thermostat, heating cable, Kiesel OkaQuiet uncoupling board, fiber additive, and installation tools for residential interiors
• Efficient Heat Transfer: Ensures uniform heat distribution across the floor surface for consistent warmth and energy-conscious operation.
• Crack Isolation & Uncoupling Protection: Uncoupling boards absorb in-plane movement, reducing stress transfer and helping protect finished floors from cracking.
• Advanced Sound Reduction: Sound-deadening boards reduce step sound by 11–14 dB (covering dependable), when installed with full perimeter isolation.
• Smart Temperature Control: WiFi programmable floor heating thermostat enables remote control, scheduling, and precise indoor temperature management.
• Versatile Floor Compatibility: Suitable for tile, stone, granite, engineered wood, and hardwood when installed per manufacturers requirements.
• Low-Profile Design: Only 5/32” (4 mm) thin flooring boards help maintain minimal floor height while providing thermal barrier insulation, floor stability, and professional-grade performance.
• Quick and Secure Installation: Includes plastic cable mounting straps for clean, stable, and organized heating cable placement, and self-adhesive tape for holding cable loops in place between the mounting straps during self-leveling compound installation.
• Indoor-Use Certified System: Designed for interior residential spaces, including bedrooms, halls, entryways, dining rooms, and bathtub surround areas without direct water exposure.
• Flat and Tension-Free Surface: Weighted, tension-free construction creates an even substrate for smooth compound application, strong tile support, and suitability for large-format tiles.
• Reduced Compound Requirements: Flat, cavity-free board construction supports efficient substrate coverage, full mortar transfer, and full tile support for tile and stone installations.
• Easy to Cut and Handle: Boards can be cut, scored, or sawn for fast on-site fitting and easier layout adjustments.
• Sustainable Construction: Boards contain 90% post-consumer recycled content, are plastic-free, and contribute toward LEED projects.
• VOC-Free and Environmentally Safe: Manufactured without VOCs, supporting healthier indoor air quality.

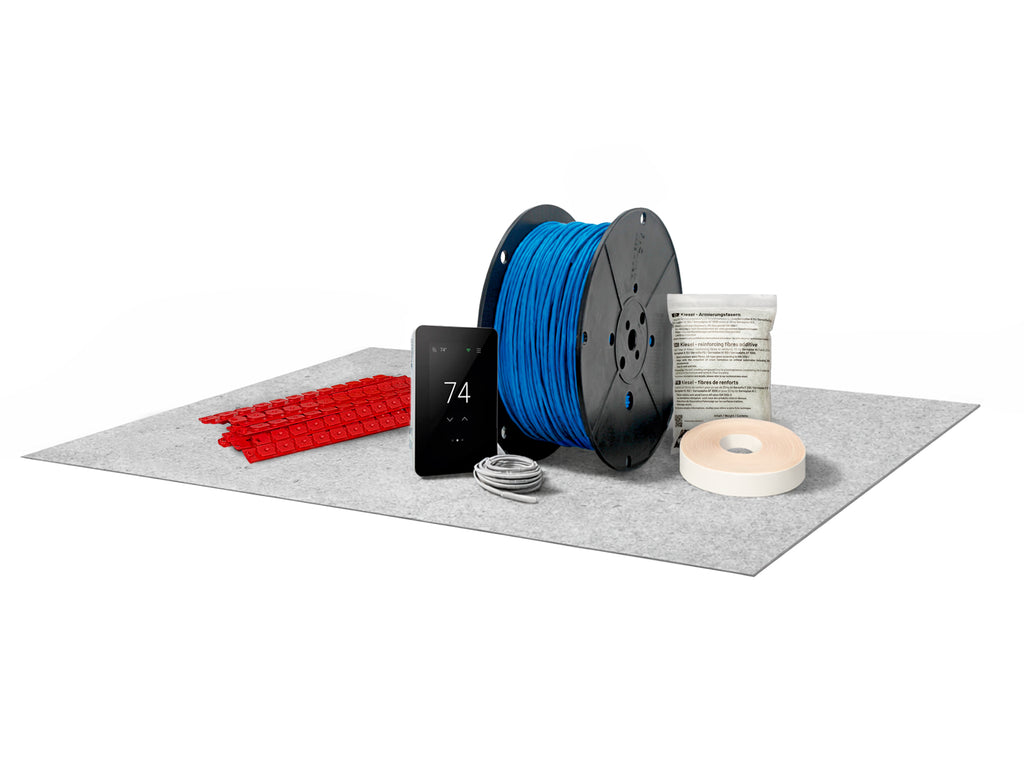

Heating Kit Components:

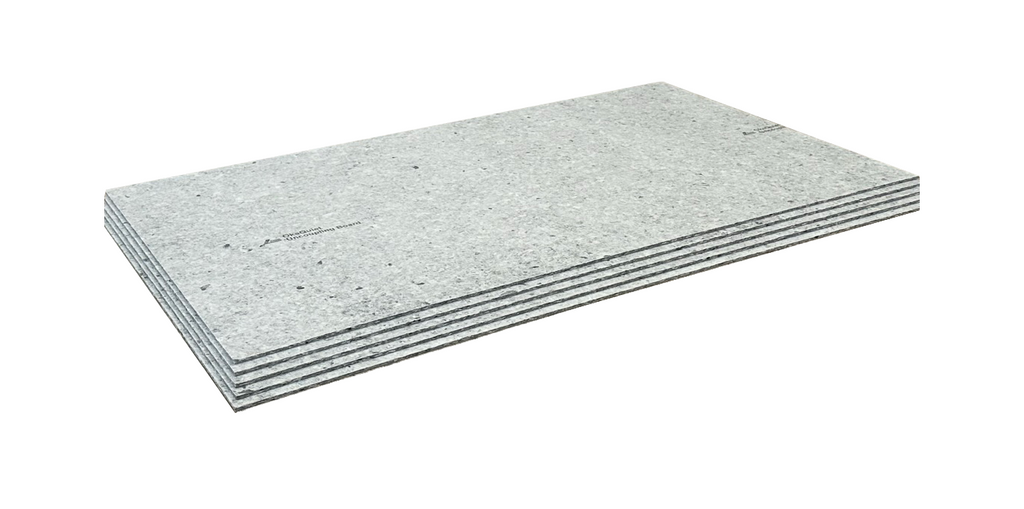

• Kiesel OkaQuiet Uncoupling and Sound Deadening Boards

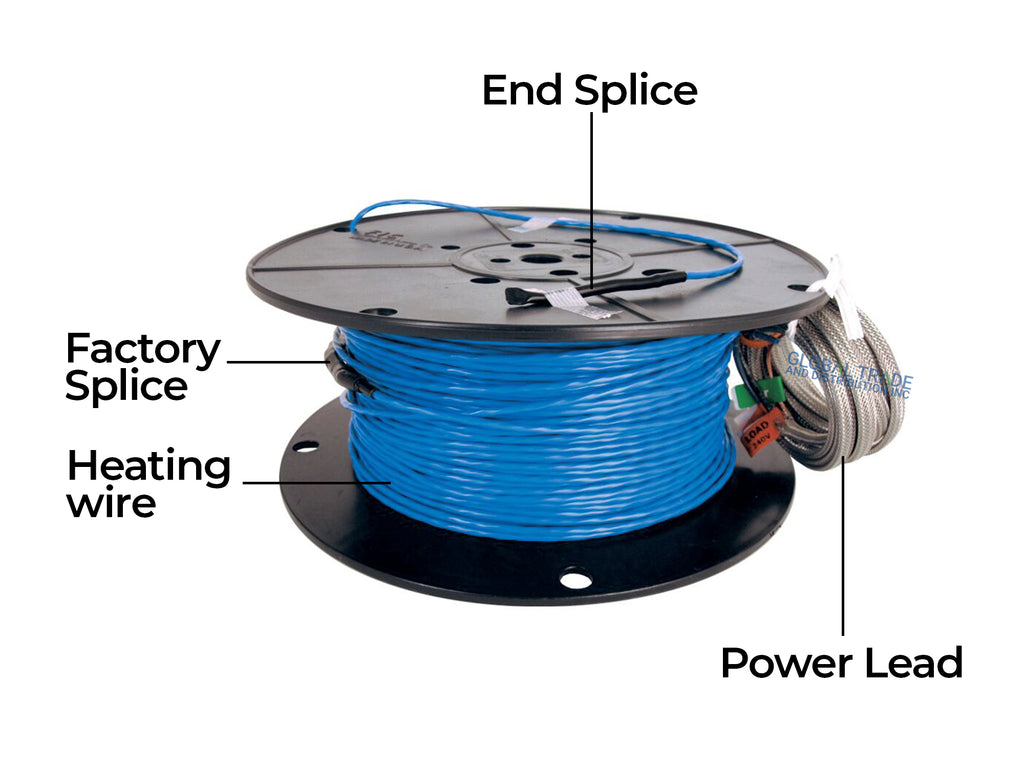

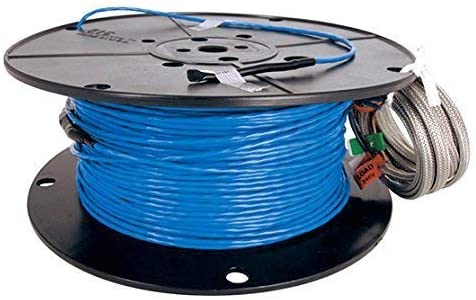

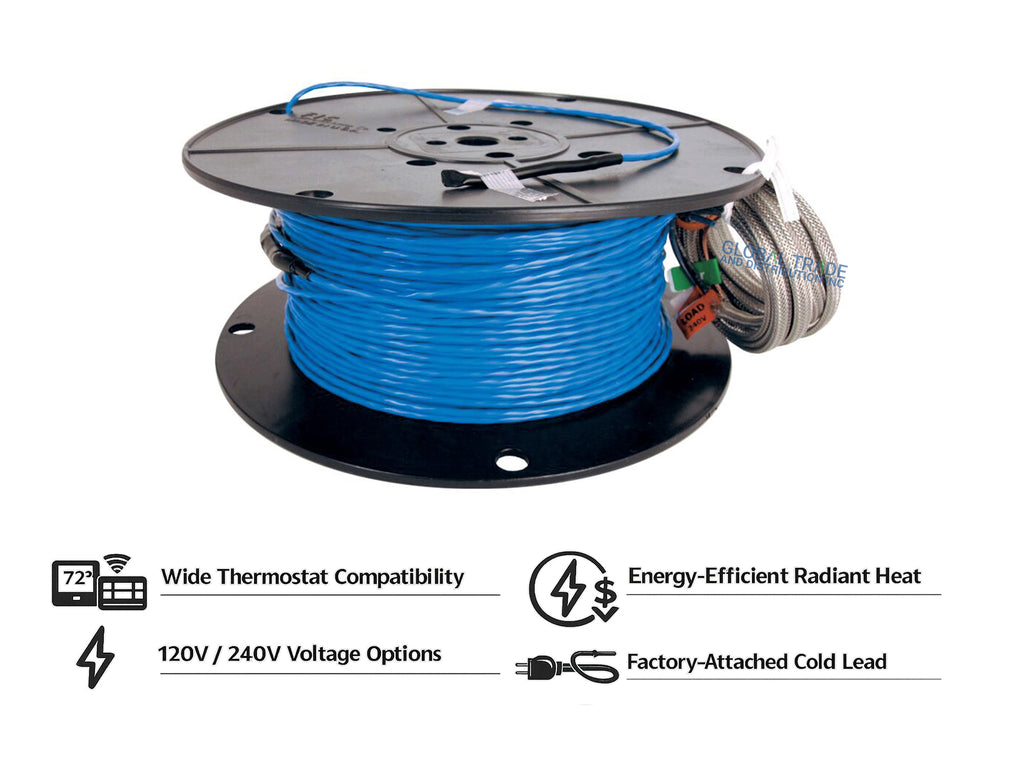

• SunTouch Underfloor Heating Cable
• SunTouch ConnectPlus WiFi Programmable Floor Heating Thermostat
• Roll of Double-Sided Self-Adhesive Mounting Tape
• Set of Plastic Cable Mounting Straps

• Kiesel Fiber Bags

Product Description:

This floor heating kit is a complete electric radiant floor heating system engineered to deliver comfort, durability, consistent heat distribution, and reliable performance across residential interiors. Designed for indoor use, the system combines a high-performance underfloor heating cable with an OkaQuiet board, which serves as the uncoupling sheet and sound-deadening underlayment for the heated floor system, while offering crack isolation and thermal barrier insulation in one integrated assembly.

Ensure the subfloor is clean, level, and stable. Install Kiesel OkaQuiet in a staggered brick pattern, leaving a 5 mm (3/16") gap at walls and vertical surfaces. Set the boards into compatible thin-set mortar with a 1/4" x 1/4" x 1/4" square-notched trowel, pressing firmly for full coverage. After curing, tape the seams with 3/8" masking tape for added sound reduction. If using Kiesel fiber-reinforced self-leveling compound, wait 24 hours and ensure the adhesive is fully dry.

Cable straps should be securely bonded to the Kiesel OkaQuiet board using a hot glue gun before the underfloor heating cable is installed. Proper fastening helps keep the radiant floor heating cable firmly in place and reduces the risk of movement or floating during self-leveling compound pours, such as Servoplan KI 1, which must be reinforced with Kiesel glass fiber additive for added strength and stability.

The self-leveling compound then fully encapsulates the cable, creating a smooth, even surface before the finished flooring is installed. Proper encapsulation up to 3/8" thick ensures consistent heat transfer, reduces thermal loss, and improves overall system efficiency by up to 40% when installed correctly. Once embedded, the heating system supports the installation of diverse tile types, including ceramic tile, porcelain tile, granite tile, marble tile, onyx tile, quartzite tile, gneiss, and mosaic tile.  It is also suitable for use beneath engineered wood and hardwood flooring (check with the covering manufacturer for suitability for heated floors).

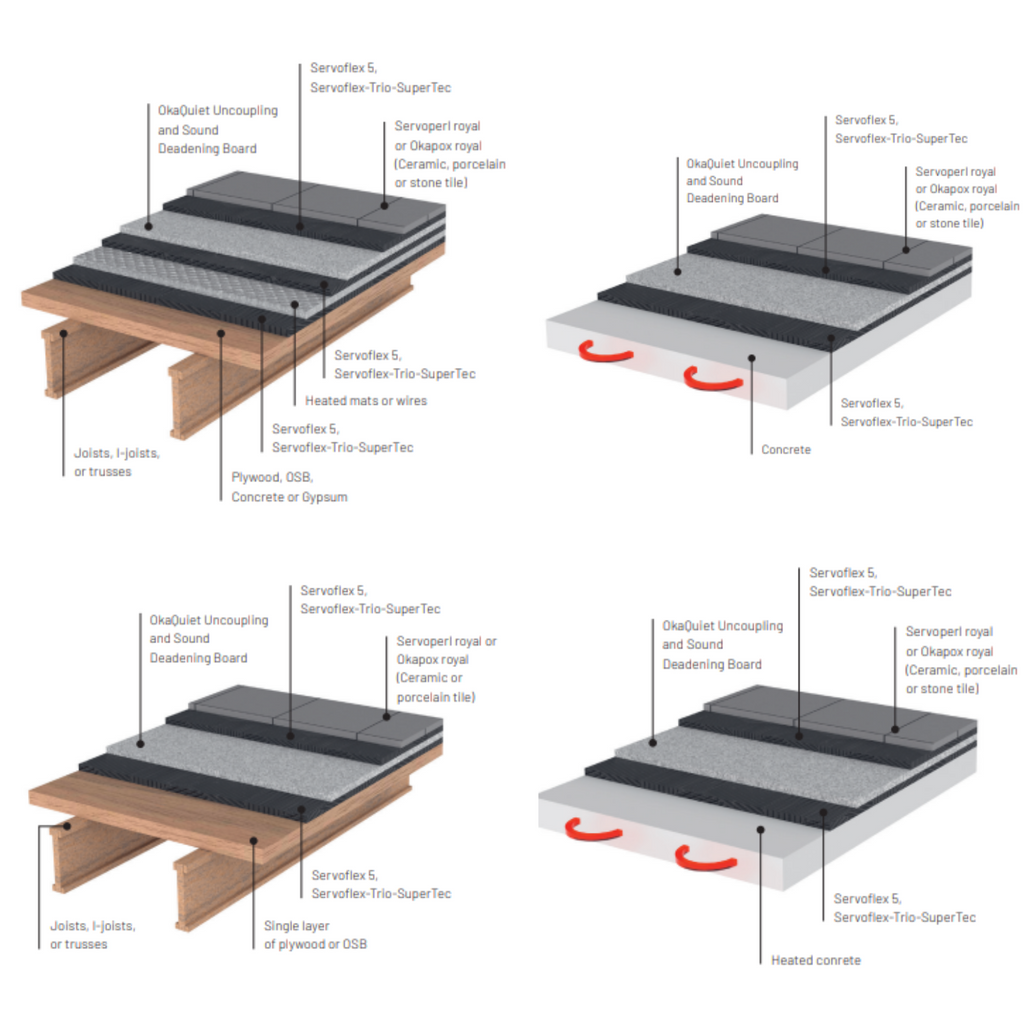

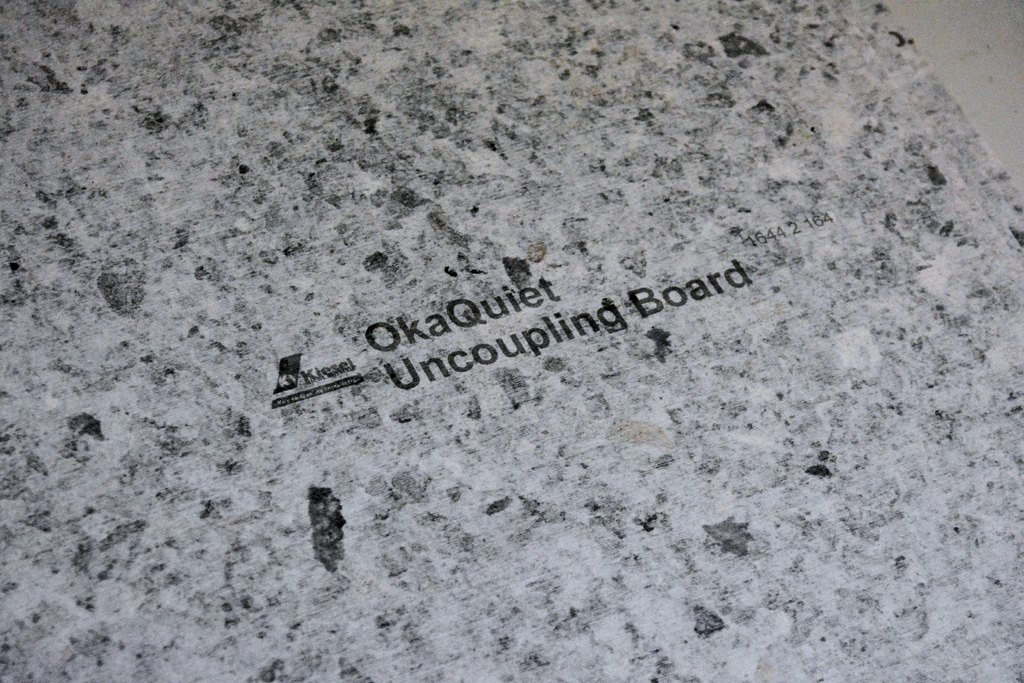

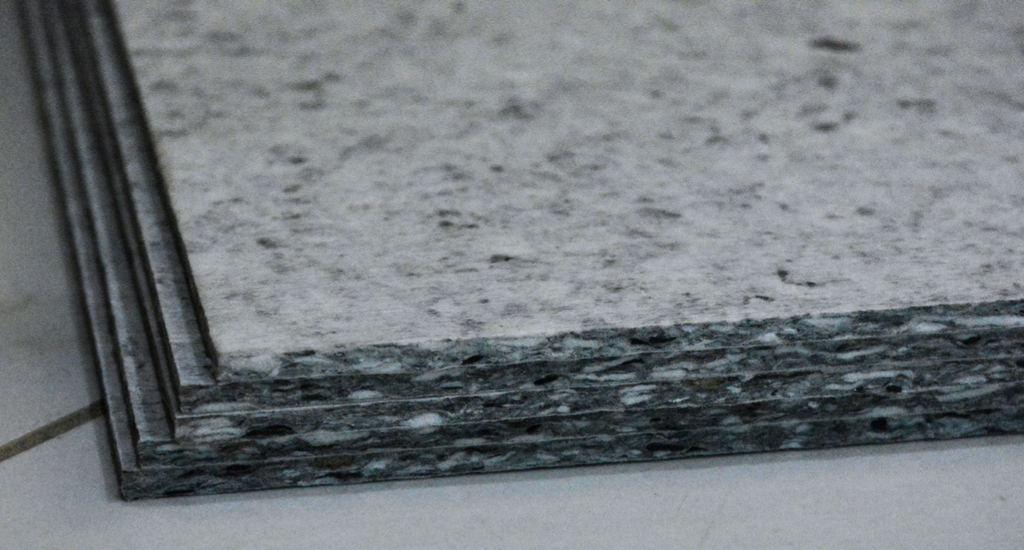

At the core of the system is Kiesel OkaQuiet, a lightweight flooring board engineered with a multi-layer compressed fiber structure that absorbs substrate movement and reduces stress transfer to surface floor coverings. The OkaQuiet board is only 5/32 in. (4 mm) thin and features a weighted, tension-free construction that helps create a smooth, stable substrate for finished flooring. This tile uncoupling board provides crack isolation and acts as an insulating floor underlayment to improve walking comfort and sound-deadening performance. Its flat construction provides full surface support suitable for large-format tile installations.

The OkaQuiet boards can be cut, scored, or sawn to accommodate room layouts, fixtures, doorways, drains, and transitions, allowing installers to make precise on-site adjustments as needed. This flexibility makes it easier to fit the boards around corners, uneven layouts, and detailed floor plans while maintaining clean edges and consistent placement for accurate fitting and professional results. The adaptable format supports efficient installation across residential living areas and indoor spaces, including basements, kitchens, living rooms, dining rooms, bedrooms, entryways, hallways, foyers, bathrooms, balconies, and bathtub shower areas. Offering a durable, professional-grade solution for both homeowners, DIY users, and installers.

Its advanced uncoupling technology accommodates differential movement between the substrate and the tile layer, reducing the risk of cracks and ensuring a durable, long-lasting installation. It helps resist moisture exposure in interior floor assemblies, making it suitable for low-moisture areas. It is compatible with multiple substrates, including concrete, plywood, and cement board (fiber cement or cementitious backer board), providing a reliable solution for a wide range of flooring projects. The OkaQuiet board bonds seamlessly with modified thin-set mortar adhesives, ensuring a strong and stable foundation for tiles.

Kiesel OkaQuiet boards contain approximately 90% post-consumer recycled content, are plastic-free, and VOC-free. These features support environmentally responsible construction practices and contribute to LEED-oriented projects when used as part of a compliant system. Their cavity-free, flat board construction differs from raised plastic sheet membranes and provides full surface support for tile installations. The low-profile design helps maintain minimal floor height while supporting sound reduction, walking comfort, and efficient installation in both renovation and new construction projects.

Impact sound reduction has been laboratory measured at approximately 11–14 dB, depending on floor covering and test method. Measured values are covering-dependent and determined in accordance with applicable DIN test standards. To achieve this level of performance, installers must ensure full isolation by leaving perimeter gaps and covering board joints and wall transitions with generic masking tape, preventing rigid contact between adjacent surfaces.

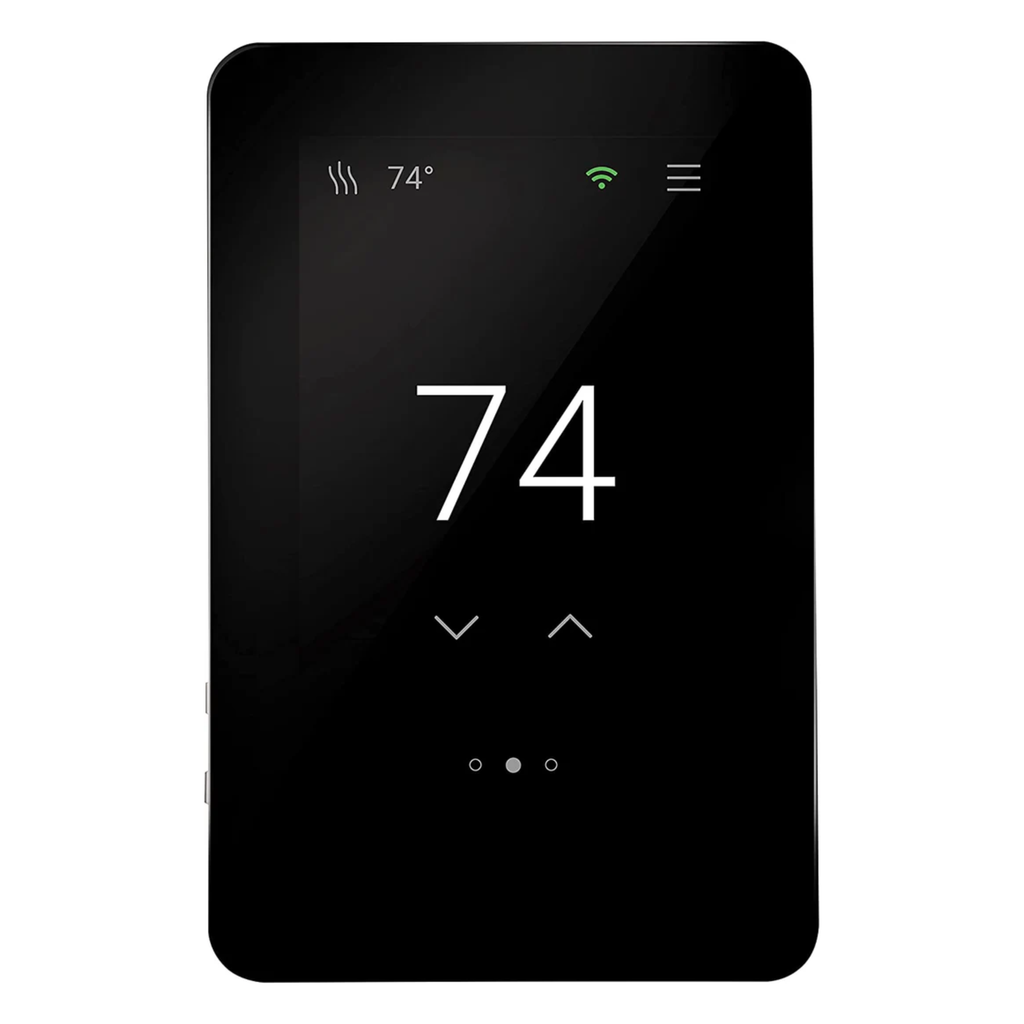

The heated flooring system temperature is regulated by the included WiFi programmable floor heating thermostat, enabling remote access, scheduled heating cycles, and precise temperature adjustment. The thermostat allows users to program custom heating schedules, adjust setpoints in real time, and monitor system operation for optimized performance. By maintaining stable surface temperatures and controlled heating intervals, the system delivers consistent indoor comfort while helping manage energy consumption in accordance with daily routines and seasonal demands.

Designed for indoor residential applications, this electric radiant floor heating system provides a coordinated solution that integrates uncoupling, sound reduction, exceptional crack prevention, enhanced floor stability for various tile installations, and efficient radiant heating performance within a single floor assembly. The system supports modern construction and renovation requirements while delivering dependable operation, structural reliability, and long-term comfort.
