All-in-one Waterproof Shower Kit with 38" x 32" Center Tray, 2" Flange and 4" Drain Cover

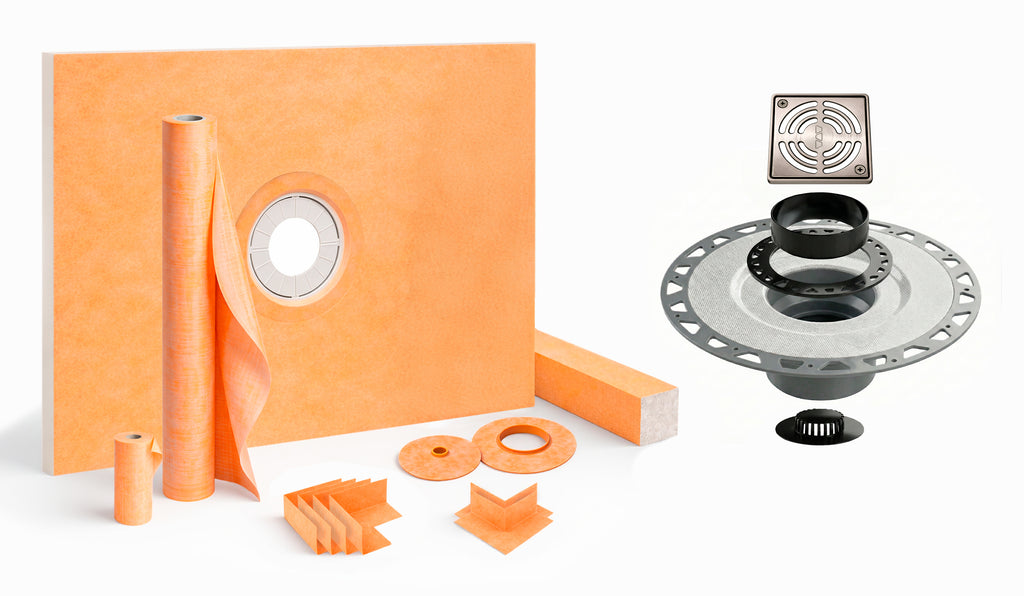

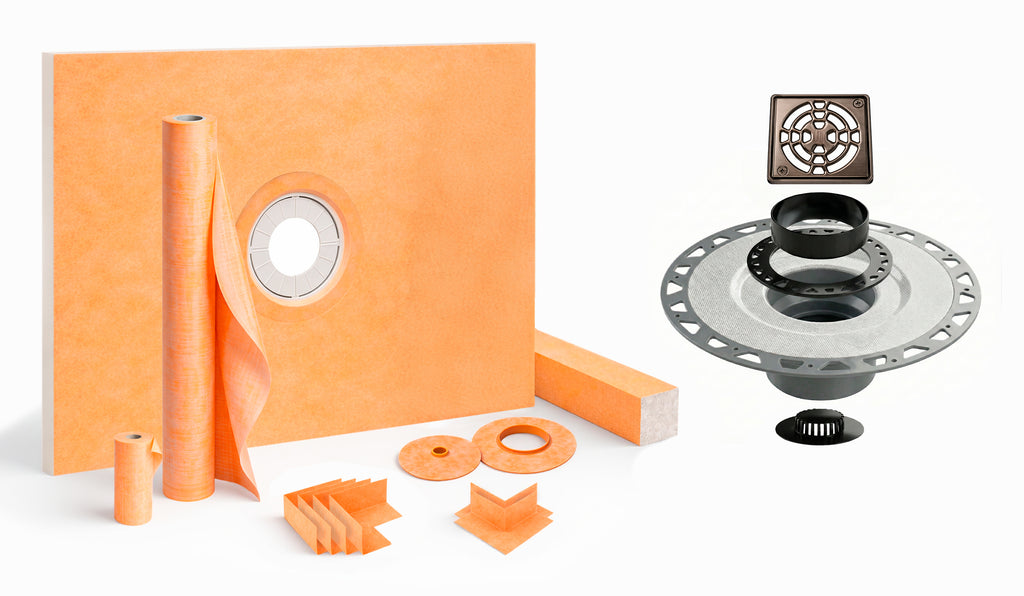

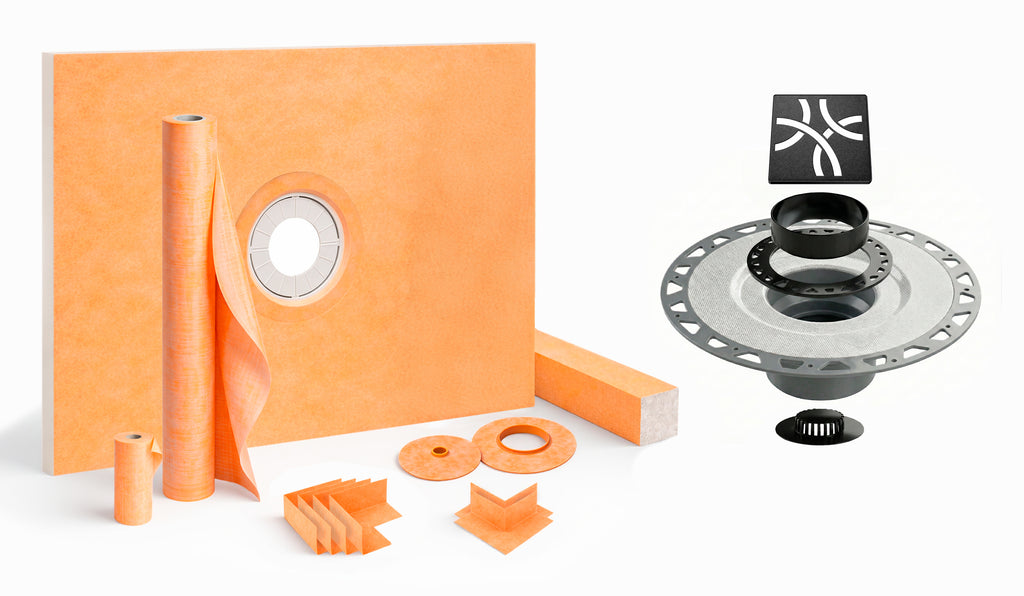

This waterproof shower kit includes following components:
Schluter Systems KERDI-SHOWER-TT shower tray 38" x 32" (KST965/810BF)
Schluter Systems KERDI waterproofing membrane 3'3" x 33' = 108 Sq Ft (KERDI200/10M)
Schluter Systems KERDI-BOARD-SC curb 38" x 6" x 4-1/2" (KBSC115150970)
Schluter Systems KERDI-DRAIN grate kit 4"
Schluter Systems KERDI-DRAIN 2" bonding flange kit (KD2FLKABS): 4x KERDI-KERECK inside corners (KERECK/FI2), 2x outside corners (KERECK/FA2), 1x 3/4" pipe seal (KMS172/20), 4-1/2" mixing valve seal (KMSMV235/114), and KERDI-DRAIN strainer (KD-STR)
Schluter Systems KERDI-BAND waterproofing strip 32'10" (KEBA10012510M)

Product Features:

• Pre-sloped KERDI shower pan KST 965/810 BF, 32" x 38", with center drain placement and integrated KERDI waterproofing membrane for a tile-ready shower base without the need to build a traditional mortar bed. Made of lightweight expanded polystyrene, the tray is easy to handle, trimmable to fit the desired shower layout, and installed with suitable thin-set mortar over plywood or concrete substrates.
• Schluter KERDI-DRAIN flange includes a 2 inch outlet and is available in PVC or ABS depending on the selected variation, providing a secure drain connection for tiled shower installations, bathroom renovations, walk-in showers, and shower pan replacement projects.
• Schluter KERDI-DRAIN Square Grate Assembly, 4" or 100 mm, includes a frame, height adjustment collar, and lateral adjustment ring to help adjust the grate to the selected tile thickness and tile layout. The stainless steel drain grate provides a clean finished look and integrates with the KERDI-DRAIN bonding flange.
• The Kerdi shower kit includes 108 square feet of KERDI 200 waterproofing membrane, 8 mil thick. KERDI membrane is a pliable, sheet-applied, bonded waterproofing material designed for tiled showers, bath surrounds, wet areas, and residential steam shower applications.
• All-in-one Schluter Kerdi shower kit includes essential shower waterproofing accessories: Kerdi curb 38", KERDI-BAND waterproofing strip KEBA 100/125/10M, formed KERDI-KERECK waterproofing corners, pipe seal, mixing valve seal, KERDI-DRAIN strainer, shower tray, drain flange, and grate assembly.
• Kerdi Flange Kit includes 4 inside and 2 outside prefabricated waterproofing corners, 3/4" pipe seal KMS172/20, 4-1/2" mixing valve seal KMSMV235/114, and KERDI-DRAIN strainer KD-STR. These accessories help seal corners, seams, floor-to-wall transitions, and plumbing penetrations for a watertight tiled shower assembly.
• KERDI-BAND waterproofing strip is used to seal butt joints and floor/wall connections with KERDI membrane, KERDI-BOARD, and other compatible Schluter waterproofing components. It helps create a continuous waterproof barrier throughout the shower enclosure.
• Prefabricated KERDI shower curb is lightweight, waterproof, stable, and load-bearing, making it suitable for tiled shower thresholds, glass shower doors, and custom shower layouts. The curb can be trimmed as needed to fit the installation area.
• Complete shower waterproofing system helps reduce installation time compared with traditional mortar bed shower construction. The pre-sloped tray, integrated waterproofing membrane, KERDI-DRAIN connection, curb, KERDI-BAND, waterproofing corners, and seals work together to create a reliable tile-ready shower system.
• Designed for ceramic tile, porcelain tile, marble tile, natural stone tile, mosaic tile, cement tile, and large-format tile installations. This Schluter Kerdi shower kit is suitable for residential bathrooms, basement bathrooms, guest bathrooms, master bathrooms, wet rooms, steam shower applications, and professional tile shower remodeling projects.
• Covered by Schluter’s 10-Year Limited Shower System Warranty when installed according to Schluter’s official instructions. Eligible installations using Schluter thin-set mortars, such as Schluter SET, ALL-SET, or FAST-SET, may qualify for lifetime limited warranty coverage under Schluter’s warranty conditions.

Product Description:

This all-in-one shower kit includes all the necessary components from Schluter Systems to create a watertight tiled shower system enclosure (assembly). The kit consists of a shower tray (pre-sloped shower pan) with an integrated KERDI waterproofing membrane, with center drain and offset drain options available depending on the selected model. The tray (drain pan) is made of lightweight expanded polystyrene to construct a mortar-free shower base, installed over plywood or concrete floors.

This Schluter KERDI shower kit is an all-inclusive waterproofing package designed to create a watertight tiled shower assembly without building a traditional mortar bed. The prefabricated shower tray features integrated KERDI waterproofing for faster installation, easier handling, and a tile-ready shower base. The KERDI shower curb is a lightweight, waterproof, prefabricated curb made of KERDI-BOARD and can be cut or adjusted as needed for the shower layout. Together, the pre-sloped shower pan, shower curb, waterproofing membrane, drain components, and sealing accessories help save installation time while creating a reliable tile-ready shower system for bathroom renovation, walk-in shower, and residential steam shower applications.

The KERDI drain kit includes a 2" flange outlet and a sleek grate assembly that easily adjusts to the thickness and layout of the ceramic tile or stone covering. The flange is designed for a bonded waterproofing assembly, providing a large contact area with the shower floor base. The KERDI shower curb is a lightweight, durable threshold made of KERDI-BOARD-SC material. It is stable, load-bearing, and ideal for use with glass shower doors or other fixtures. Its prefabricated design allows quick and easy installation, providing long-lasting protection against water damage.

For a watertight seal, apply KERDI corners where the curb connects to the tray and use KERDI-BAND at required seams, joints, and floor-to-wall transitions. KERDI 200 is a pliable, bonded polyethylene membrane with special synthetic fleece webbing, ensuring a secure bond with thin-set mortar adhesive and creating a waterproof wall surround. The pipe and valve seals overlap the KERDI membrane, closing all gaps around the pipes extending from the wall. KERDI KEBA band (strip) is designed to waterproof butt joints and floor/wall connections. The KERDI drain seamlessly integrates with the pre-sloped tray to create a reliable waterproof shower drain connection.

This all-in-one shower kit is the best solution for creating a maintenance-free, vapor-tight, waterproof tile shower enclosure (shower surround) within your home decor. It is ideal for both professional home improvement and DIY projects in tiled showers and residential steam showers. Elevate your bathroom decor with this shower kit, designed for easy installation with your choice of floor tile (bathroom tile), including ceramic tile, stone tiles, marble tile, porcelain tiles, mosaic tile, large-format tile, natural stone tile, and cement tiles. This Schluter Kerdi shower kit is suitable for bathroom renovation, walk-in shower construction, shower waterproofing, shower pan replacement, wet room preparation, and tile-ready shower base projects where a dependable PVC or ABS drain flange system is required.
