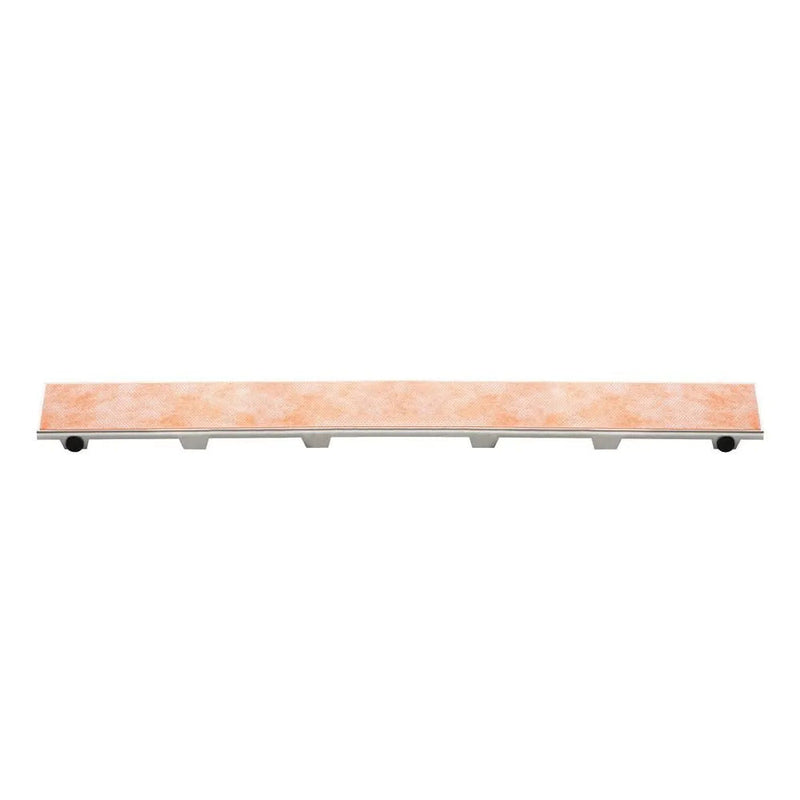

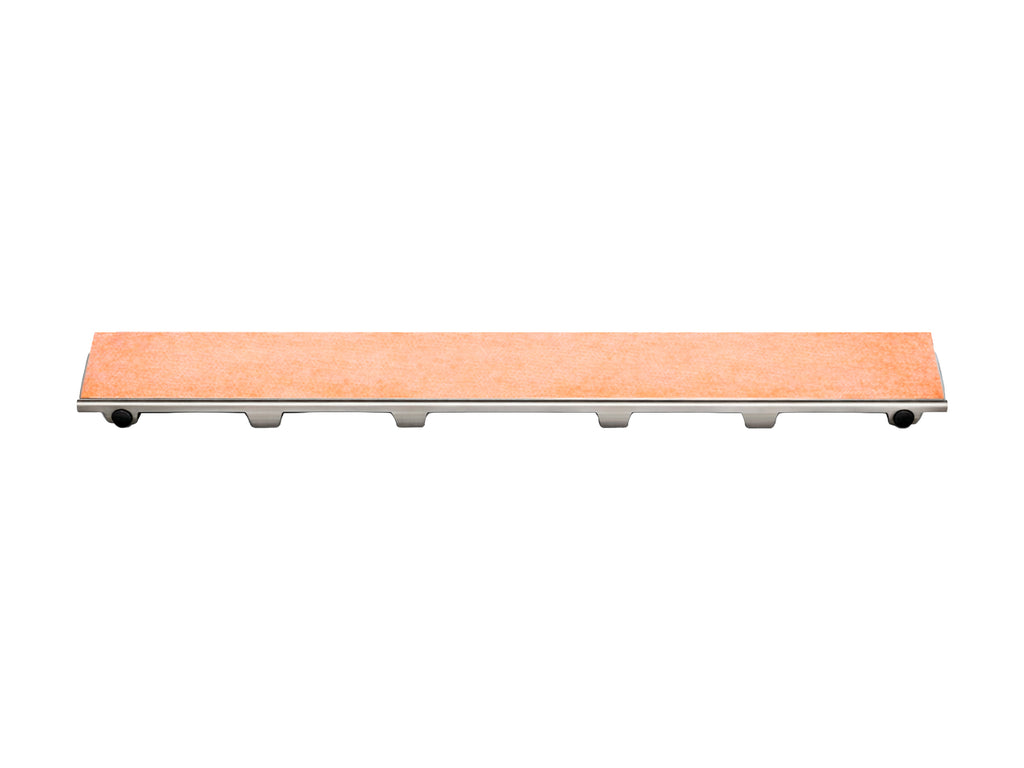

Schluter Systems Kerdi-Line Frameless Linear Grate Assembly (Cover) for Ceramic and Stone Tiles - Tileable Design

Product Features:

• Versatile Installation - It is suitable for wall-adjacent or intermediate positions in showers, allowing flexibility in placement and tile design
• Durable Material - It is made of high-grade materials, ensuring longevity and resistance to corrosion, ideal for wet environments like showers

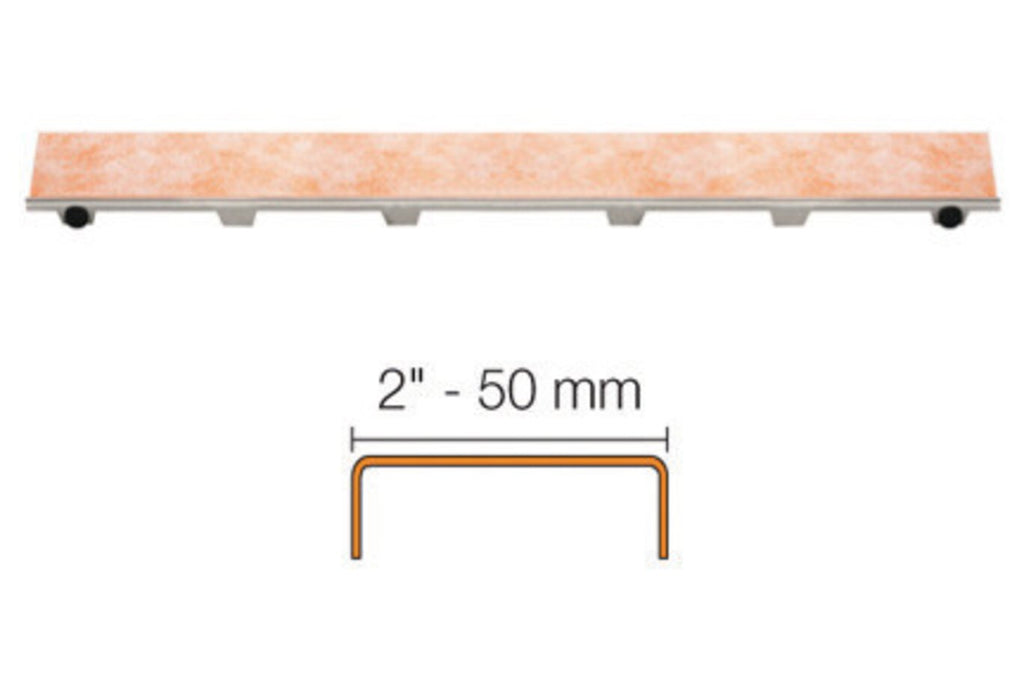

• Adjustable Frame - It can seamlessly adjust to cover tile or stone from 1/8” to 9/16” thickness, ensuring a perfect flush finish with various flooring materials
• Easy Maintenance - It is designed for easy cleaning and maintenance, the assembly includes a grate that can be removed to access the drain housing
• Designed for use with Schluter KERDI-LINE linear drain channel bodies – compatible with both center and offset drain configurations
• Premium stainless steel construction provides a rust-resistant, long-lasting finish for tiled showers and wet rooms
• Ideal for barrier-free, curbless, walk-in shower installations in both residential and commercial spaces
• Supports installation with porcelain, ceramic, natural stone, or large format tiles
• Integrates seamlessly with Schluter KERDI waterproofing membrane to ensure watertight connection and leak prevention
• Available in a variety of lengths and design finishes to complement modern and minimalist tile layouts
• Sleek linear profile offers enhanced water drainage and stylish appearance
• Frequently used in steam showers, tiled bathrooms, spa rooms, and universal design applications
• Easy to install and fully compatible with Schluter pre-sloped shower trays or mortar bed installations
• Engineered and tested by Schluter Systems for durability, drainage performance, and aesthetic excellence

Product Description:

Schluter-KERDI-LINE is a low profile linear shower drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

Floors can be sloped on a single plane to KERDI-LINE, enabling the use of large-format tiles. Accommodates all common thicknesses of ceramic tiles and stone coverings.

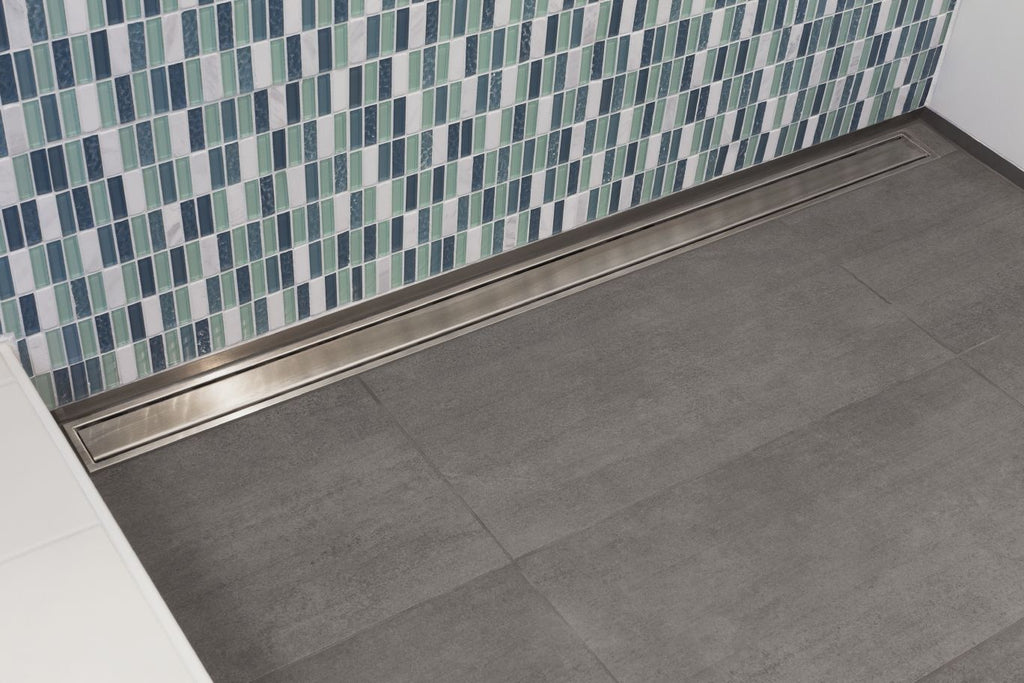

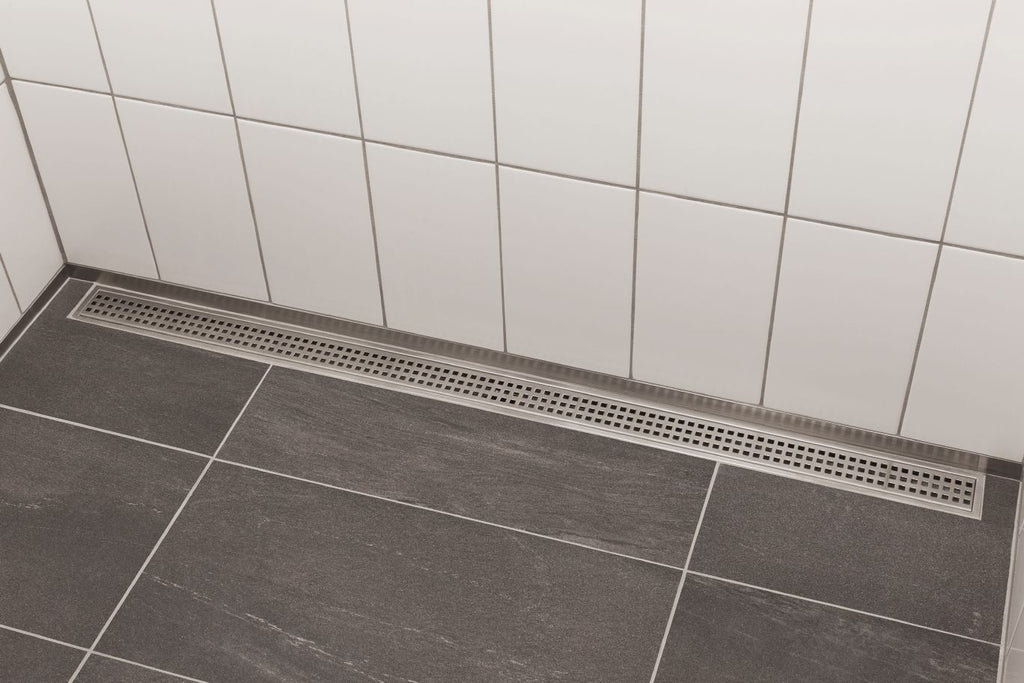

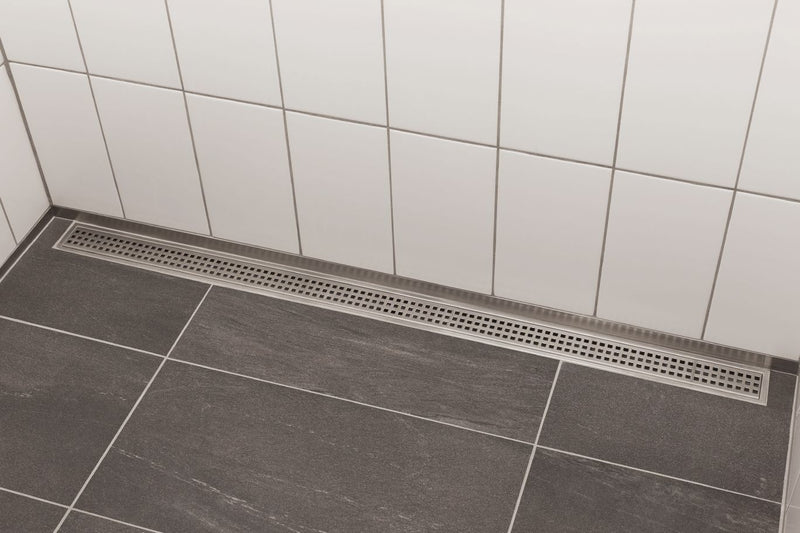

The Kerdi-Line grate assembly is designed for use with the Kerdi-Line channel body to create a low profile linear floor drain. Kerdi-Line can be installed next to the wall or in the center of a bonded waterproof assembly.

Schluter-KERDI-LINE is a low profile linear shower drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations. The floor can be sloped on a single plane to KERDI-LINE, which enables the use of large-format tiles and creates interesting design opportunities.

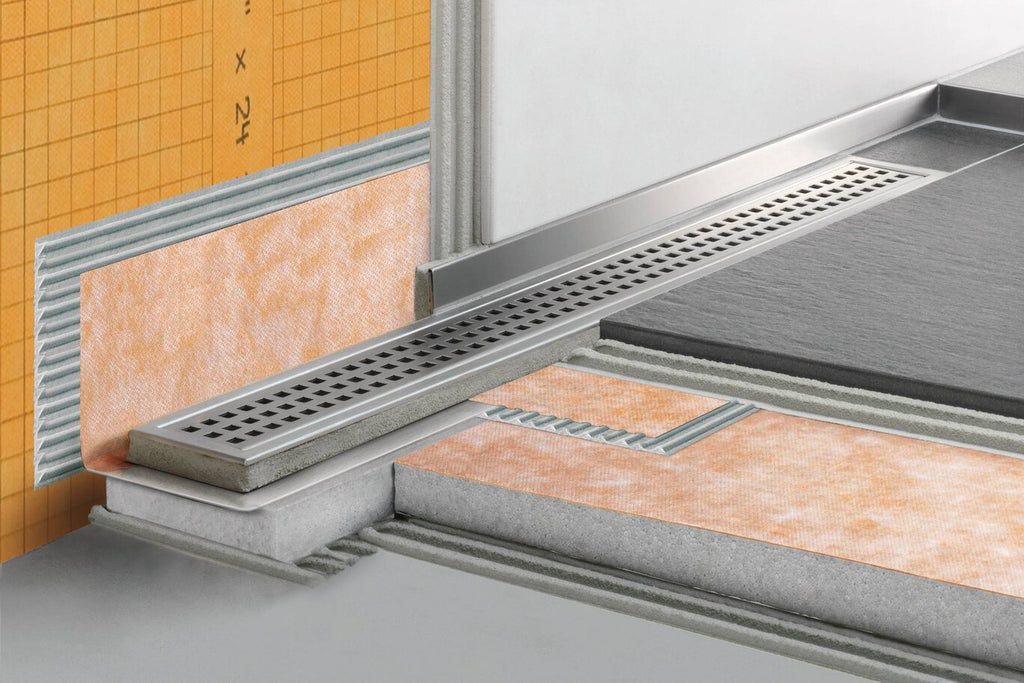

The simple connection to standard drain outlets makes KERDI-LINE suitable for new construction and renovation. KERDI-LINE is available with both center and off-set outlets. The off-set outlet is located 8" (20.3 cm) from the edge of the channel body and provides flexibility when obstacles (e.g., floor joists) are encountered during installation. KERDI LINE includes a corresponding polystyrene foam channel support to set the drain elevation to the corresponding KERDI-SHOWER-LT/-LTS shower trays. The perimeter of the channel body consists of a bonding flange laminated with a collar made of KERDI. It ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls. KERDI-LINE is available in channel lengths from 20" to 72" (50 cm to 180 cm) in 4" (10 cm) increments. The bonding flange extends approximately 1" (2.5 cm) beyond the channel on all sides.

If KERDI-LINE is placed at shower entrance, it is recommended that grate assembly A or the TILE grate is chosen and that the drainage openings span the maximum width of the entrance to limit potential overflow; secondary drainage (e.g., KERDI-DRAIN-F) may be required in the drying area.
