Schluter Kerdi 4 Inch Square Grate Assembly with Bonding Flange – Complete Shower Drain Kit for Tiled Showers

Product Features:

• Waterproofing Integration - Designed for seamless connection to Kerdi or other bonded waterproof membranes, ensuring a reliable, watertight seal at the top of the drain assembly.
• Versatile - Features a fully adjustable grate assembly that supports a wide range of tile thicknesses, enabling precise alignment with your tile layout.
• Flexible Options - The grate assembly allows for both lateral and tilt adjustments, offering unmatched adaptability to accommodate any tile installation requirement.
• Sleek Designs - Available in Classic or Contour designs with multiple finishes, enhancing the aesthetic of your shower space with minimal visible hardware after installation.
• Innovative - Choose from three stylish grate options - Floral, Curve, or Pure - to personalize the look of your shower, each designed to integrate smoothly with the surrounding tiling.
• 4" square stainless steel grate designed for Schluter KERDI-DRAIN
• Compatible with Schluter shower waterproofing systems and drain assemblies

• Ideal for tiled showers, curbless showers, and barrier-free bathroom projects
• Seamlessly integrates with ceramic, porcelain, marble, or natural stone tile
• Low-profile design enhances modern bathroom aesthetics
• Suitable for both residential and commercial shower installations
• Easy to install over Schluter bonded waterproof membranes
• Provides secure, reliable drainage in wet room applications
• CSA and UPC listed to meet building code requirements for shower drains

Product Description:

The Schluter Systems KERDI 4-inch square stainless steel grate is a premium drain grate designed for use with the KERDI-DRAIN and KERDI-LINE shower systems. Engineered for both functionality and design, this high-quality shower grate offers a sleek, modern look with its brushed stainless steel finish, making it ideal for tiled showers, wet rooms, and custom bathroom renovations. Constructed from durable stainless steel, this square drain cover resists corrosion, ensuring long-lasting performance even in high-moisture environments.

The 4” size offers a balanced, minimalistic profile that blends seamlessly with ceramic, porcelain, marble, granite, or stone tile installations. Easy to install and compatible with Schluter waterproofing systems, it guarantees reliable drainage while maintaining a clean aesthetic. Perfect for curbless showers, barrier-free bathrooms, and walk-in showers, this square shower drain grate provides both form and function in residential and commercial tile applications. Whether you’re remodeling a master bathroom or building a spa-style shower, this grate provides the finishing touch for a waterproof, stylish, and code-compliant shower base.

Schluter-KERDI-DRAIN is a shower drain specifically designed to allow connections to KERDI or other load-bearing, bonded waterproof membranes. The membrane is adhered to the large integrated bonding flange to form a waterproof connection at the top of the drain assembly. KERDI-DRAIN consists of a drain body and fully adjustable grate assembly or covering support to which tile is applied. The grate assembly accommodates a wide range of tile thicknesses and allows lateral and tilt adjustment as well. The covering support is placed flush with the top of the bonding flange and can therefore accommodate any thickness tile covering.

The standard KERDI-DRAIN is attached directly to the waste line. The drain body is available in ABS, PVC, or stainless steel. The plastic drain bodies feature a fleece-covered bonding flange. They are available with standard 2" (50 mm) and 3" (75 mm) outlets and attached to the pipe using an appropriate solvent cement. The stainless steel drain bodies are available with standard 2" (50 mm) or 3" (75 mm) no-hub outlets or 2" (50 mm) threaded outlet. The no-hub outlets are attached to the pipe using an appropriate mechanical (e.g., flexible or no-hub) coupling. The threaded outlets are attached to the pipe using thread sealing compound or tape. The simple connection to standard drain outlets makes KERDI-DRAIN suitable for new construction and renovation.

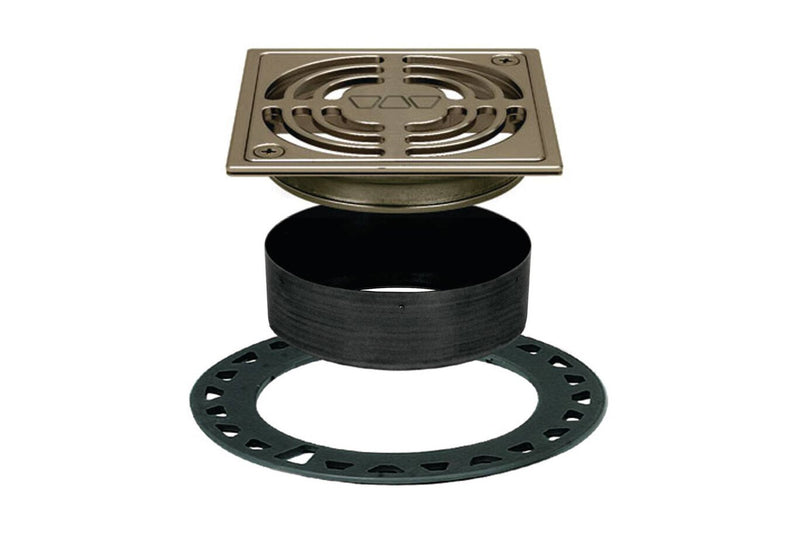

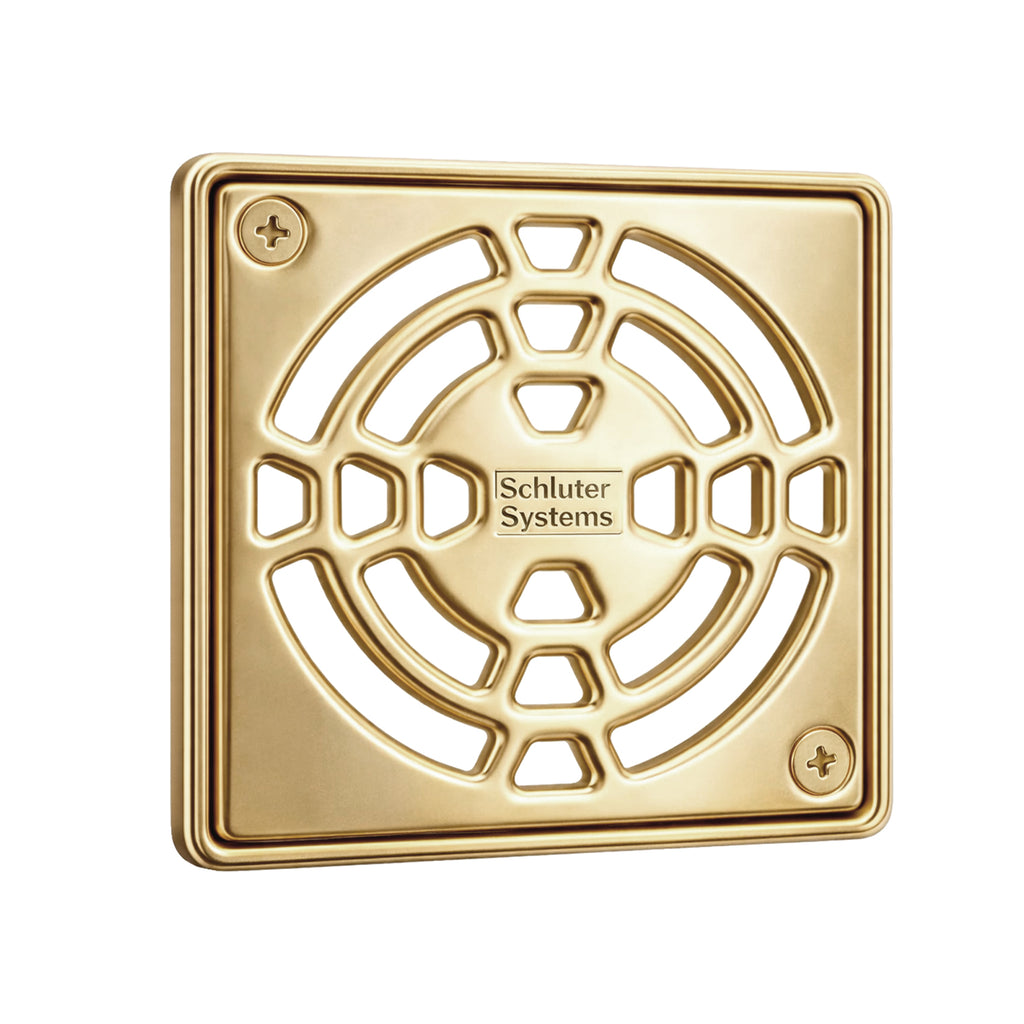

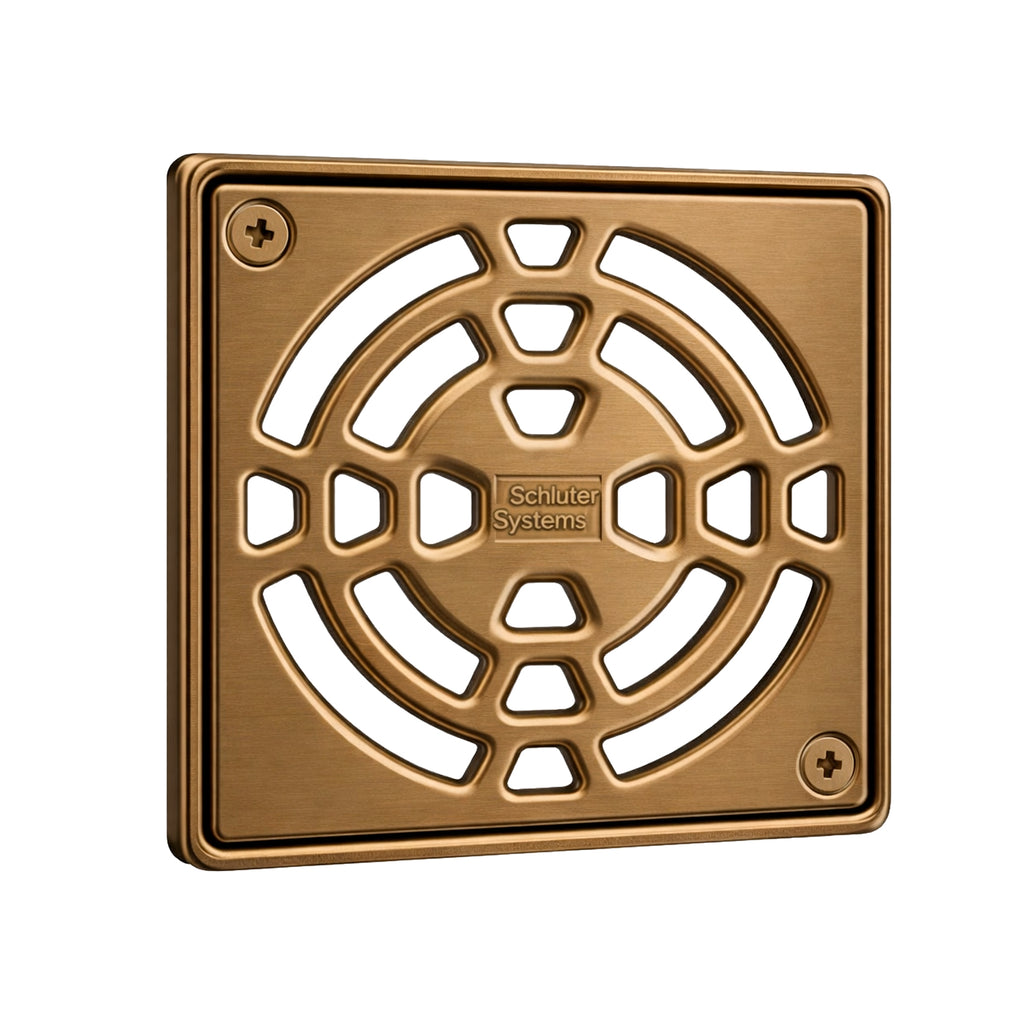

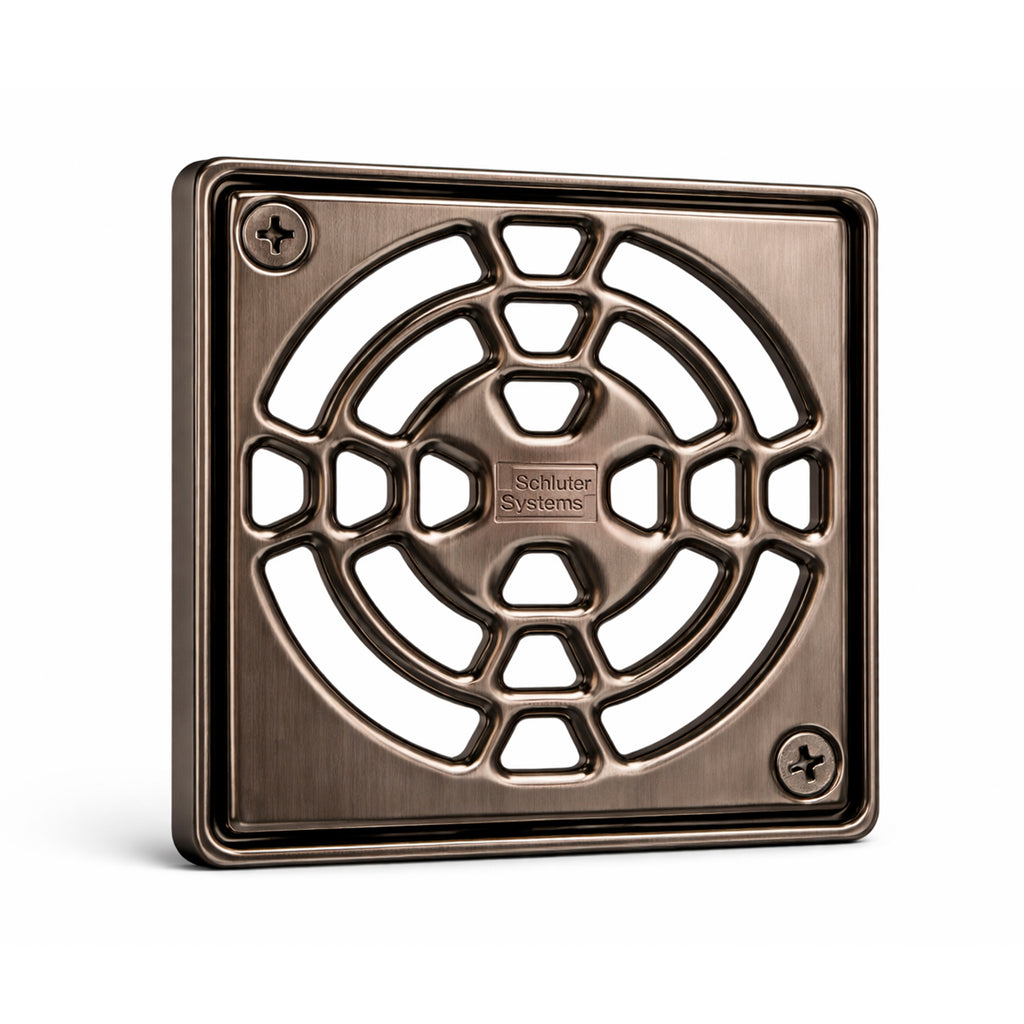

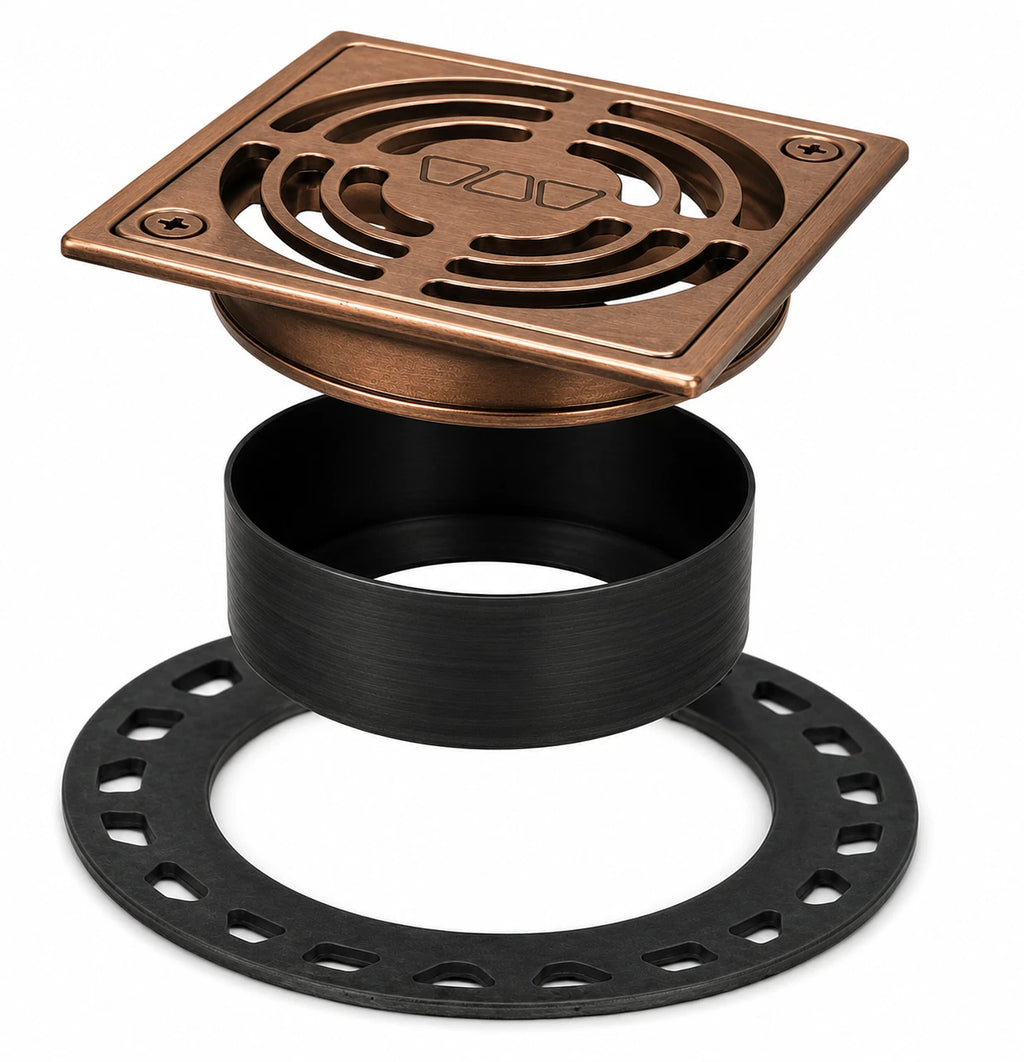

The KERDI-DRAIN grate assembly consists of a frame, which can be seamlessly adjusted to the thickness and layout of the ceramic tile or stone covering via the height adjustment collar and lateral adjustment ring and grates or cleanout covers that are placed within the frame. The 4" (100 mm) standard grate assembly frame features an approximately 1/8" (3 mm) wide reveal after installation and grate/frame combinations are available in stainless steel in CLASSIC design or anodized aluminum in CONTOUR design, both available in a variety of finishes.

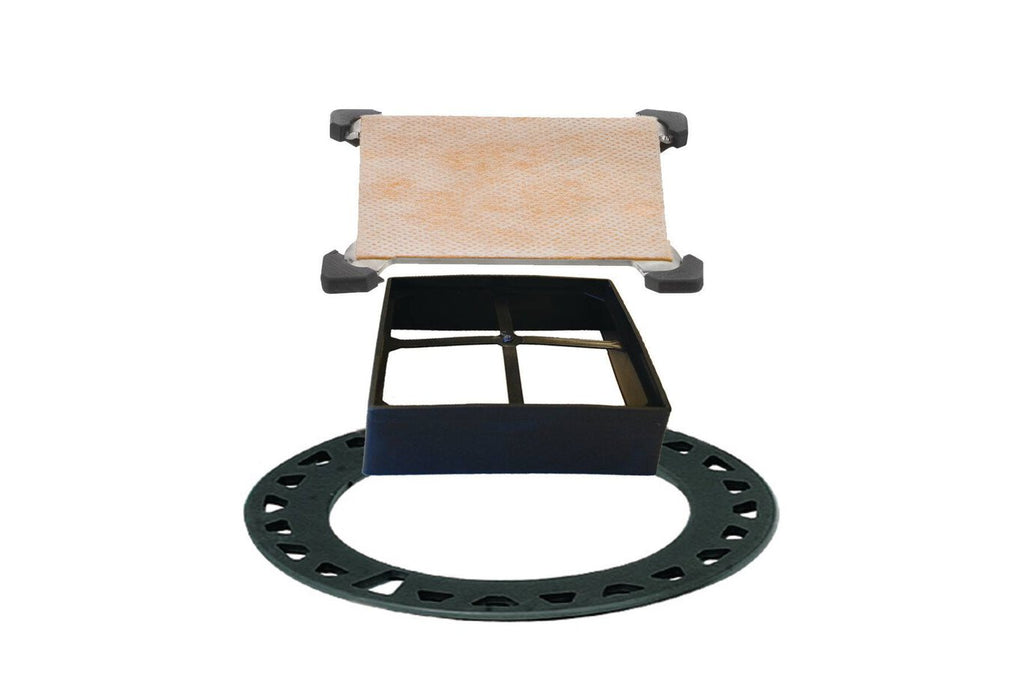

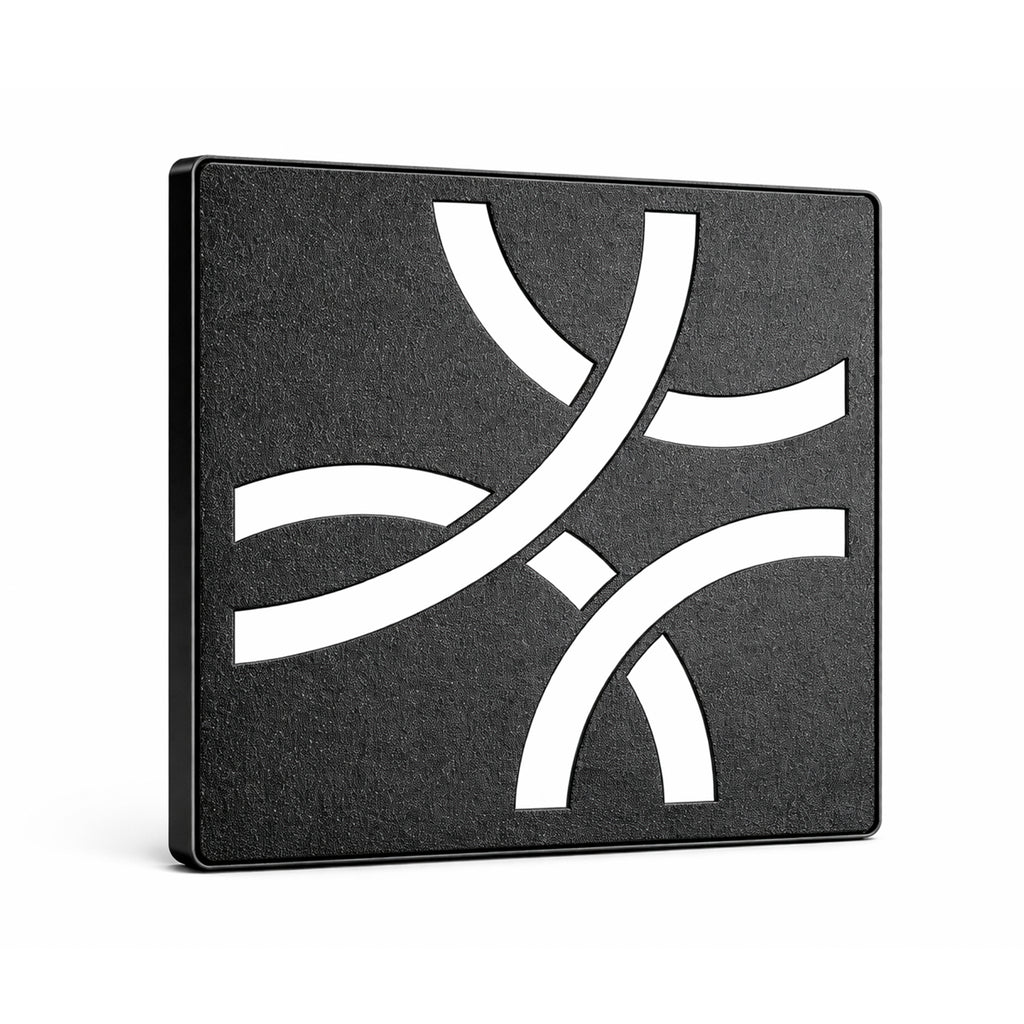

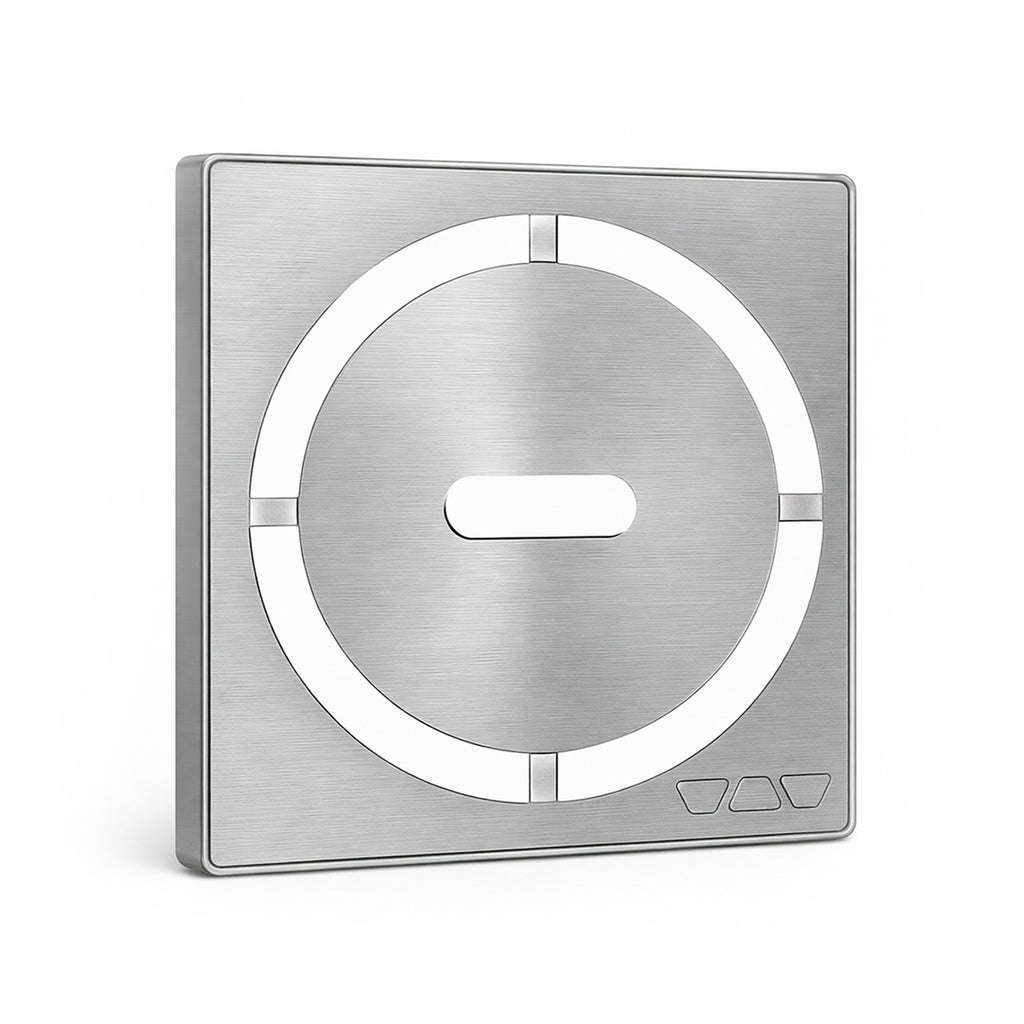

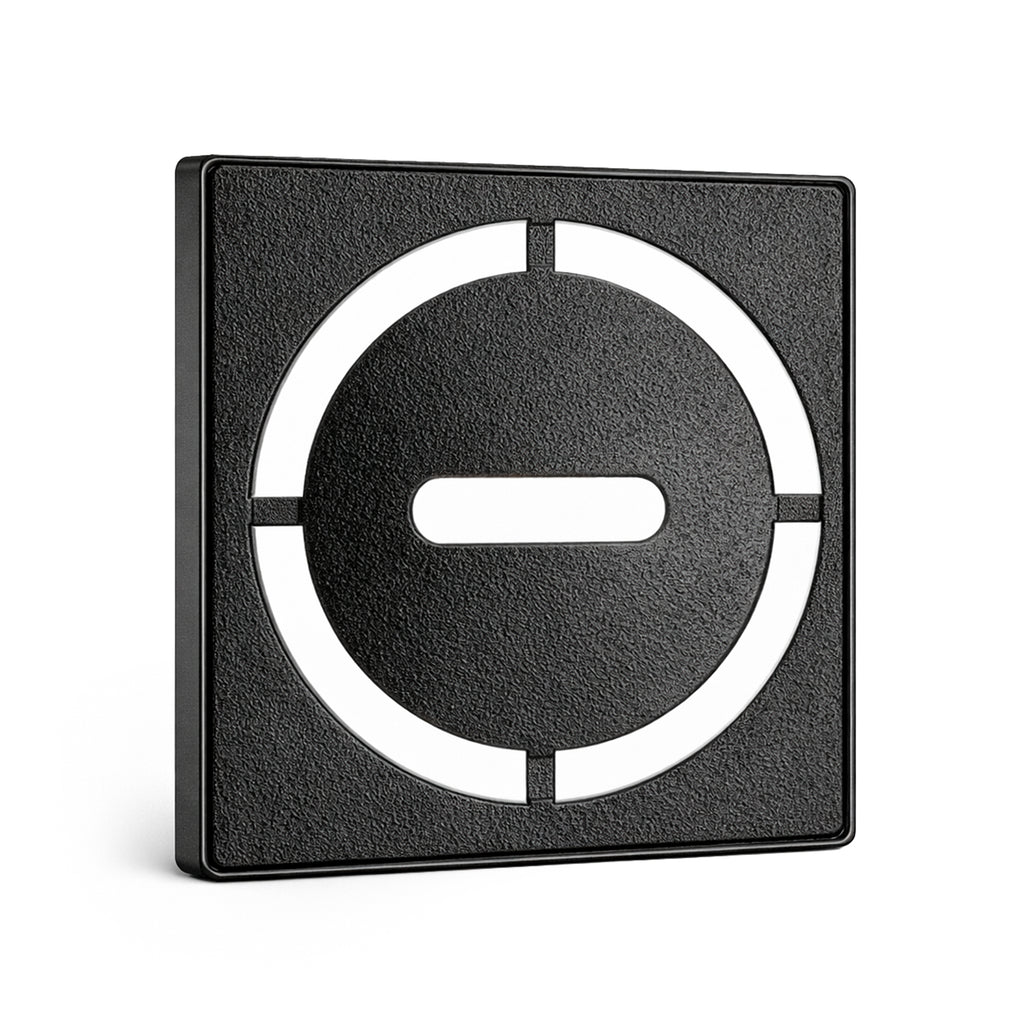

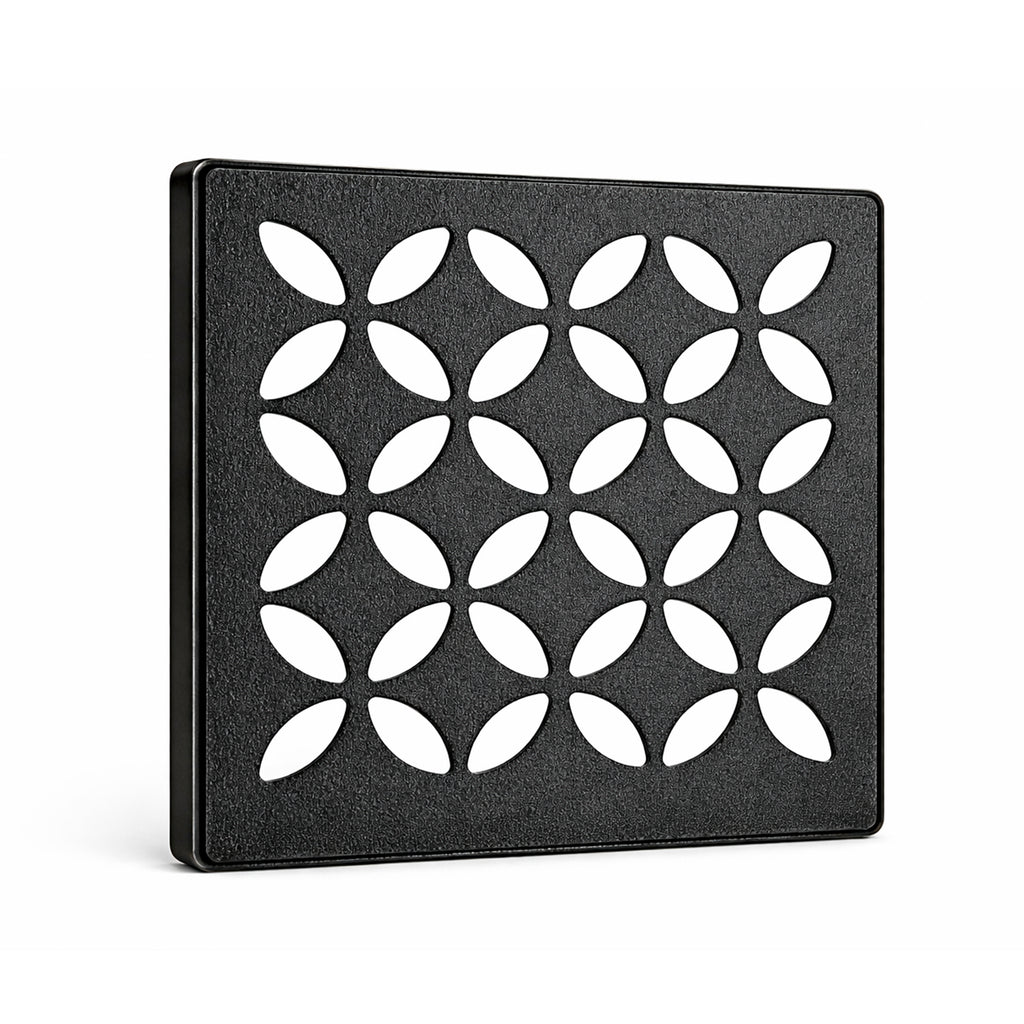

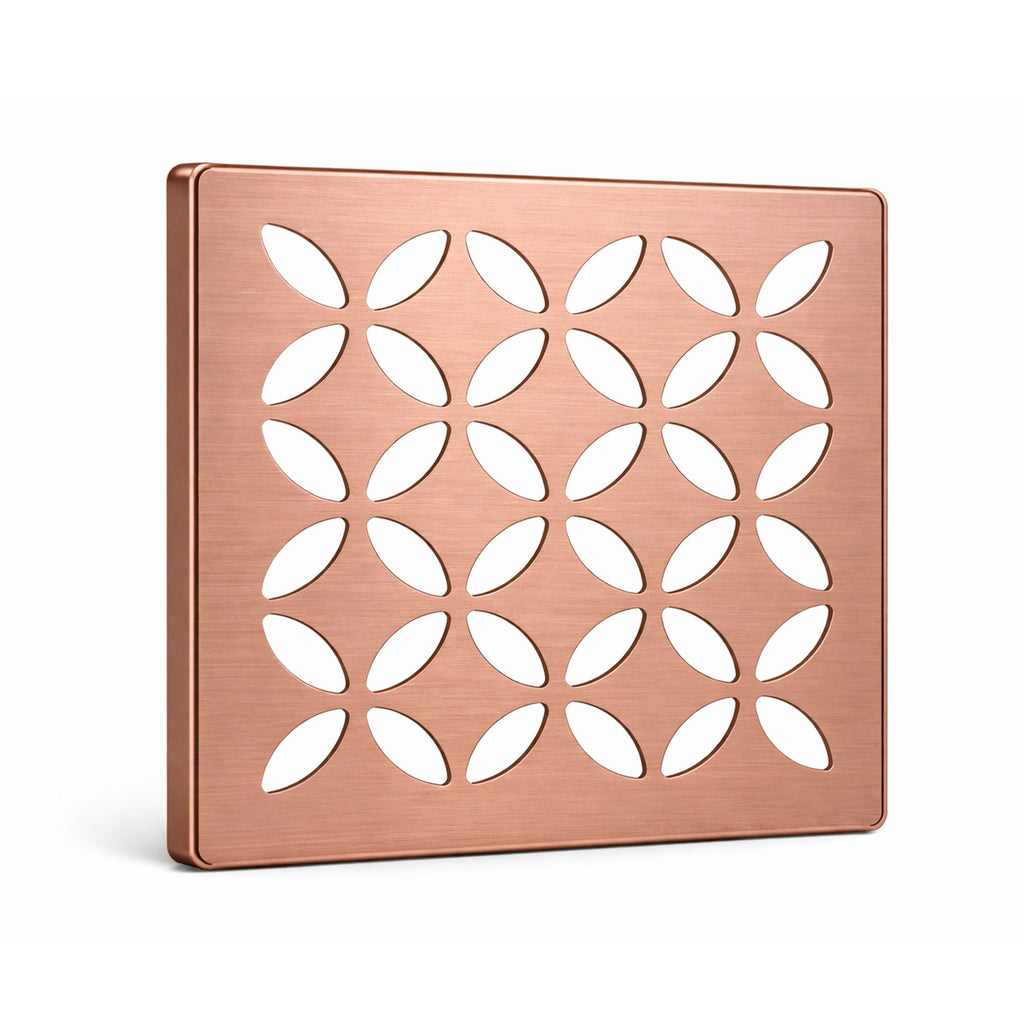

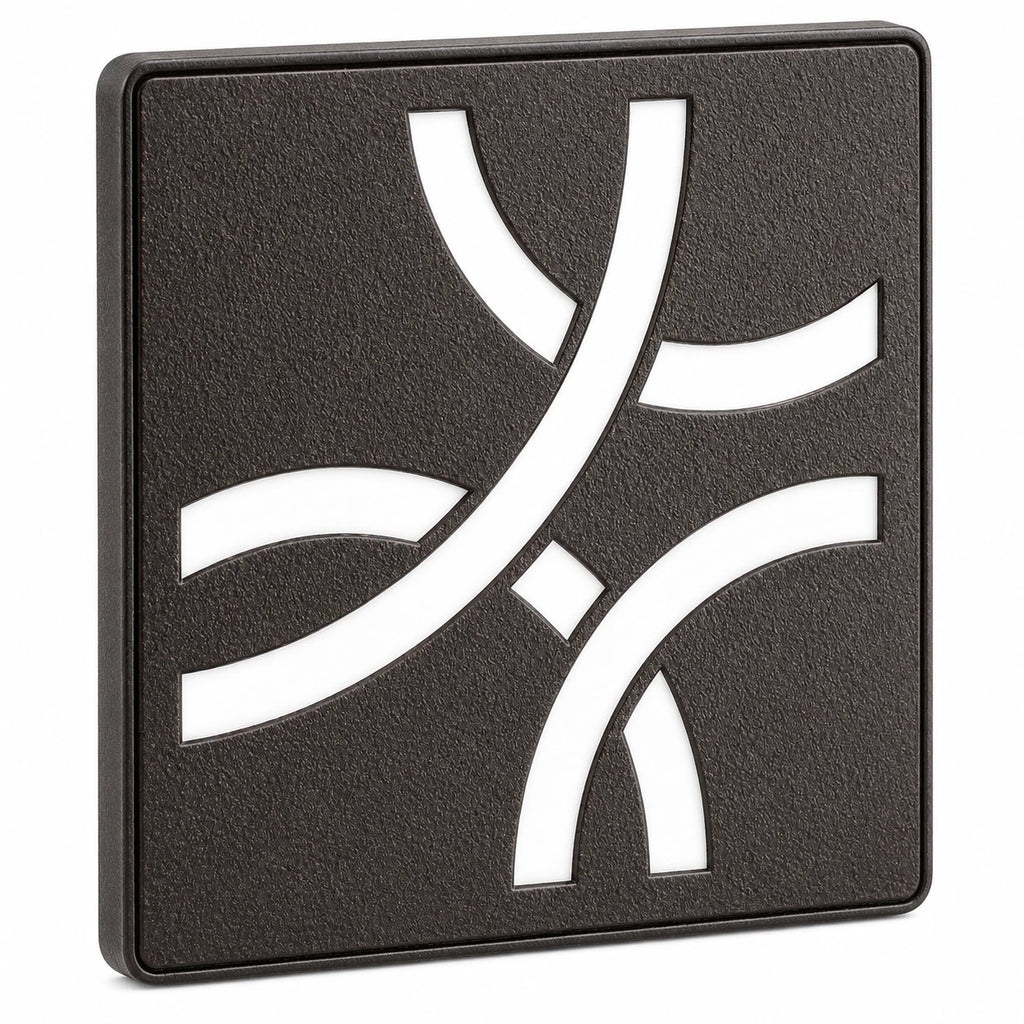

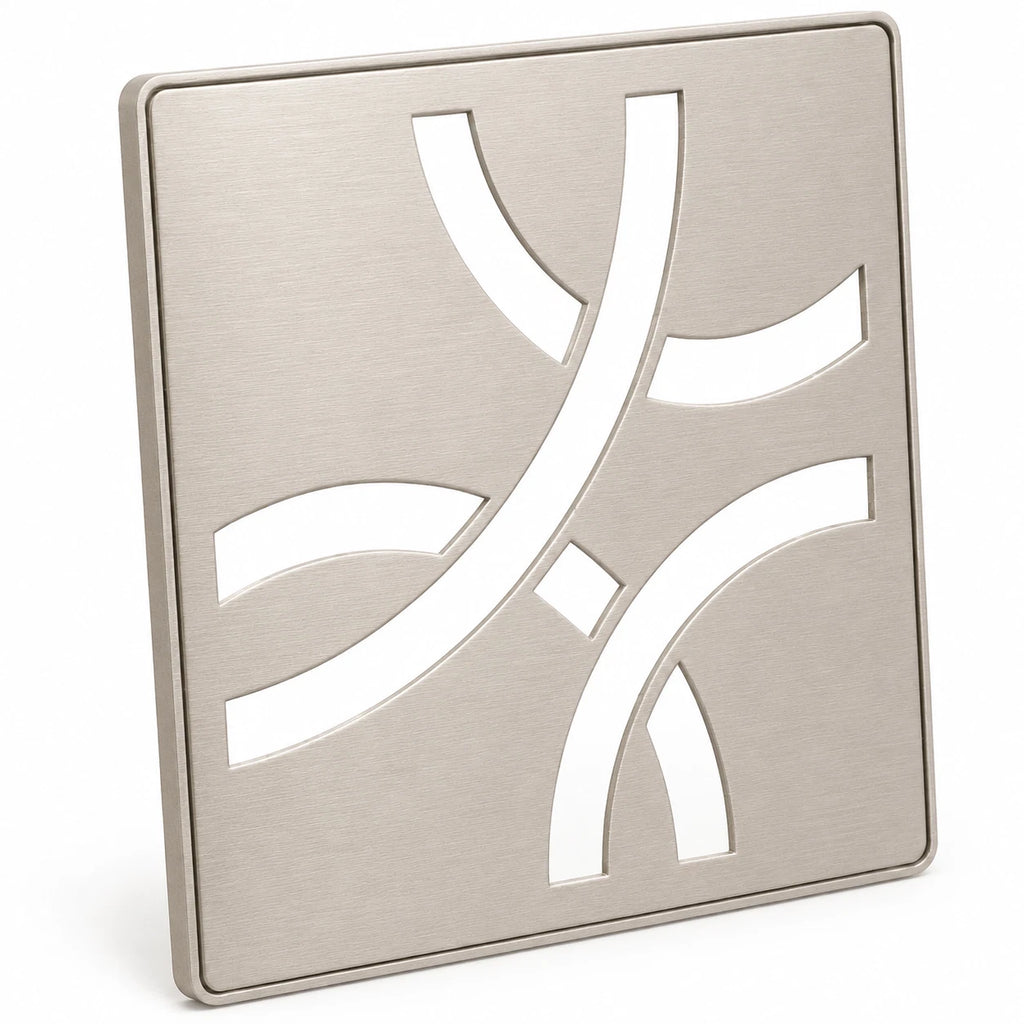

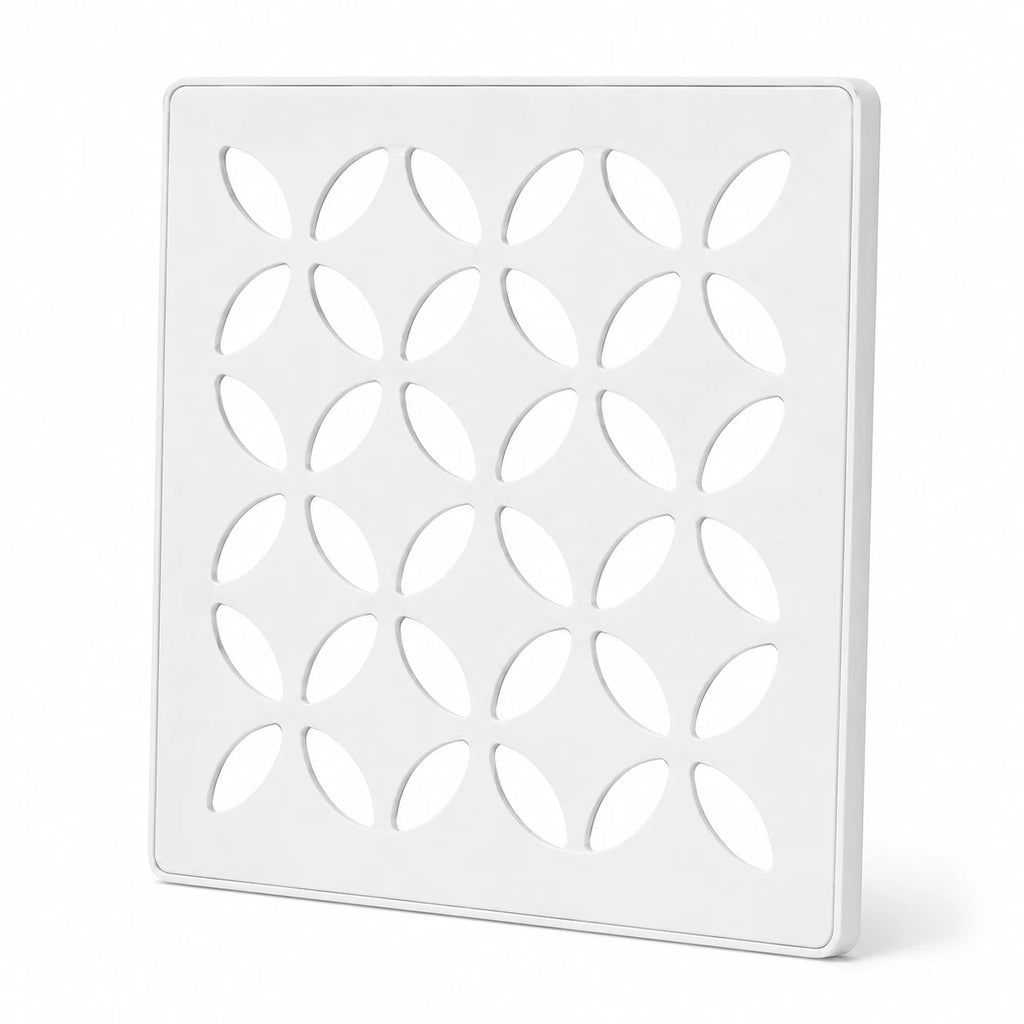

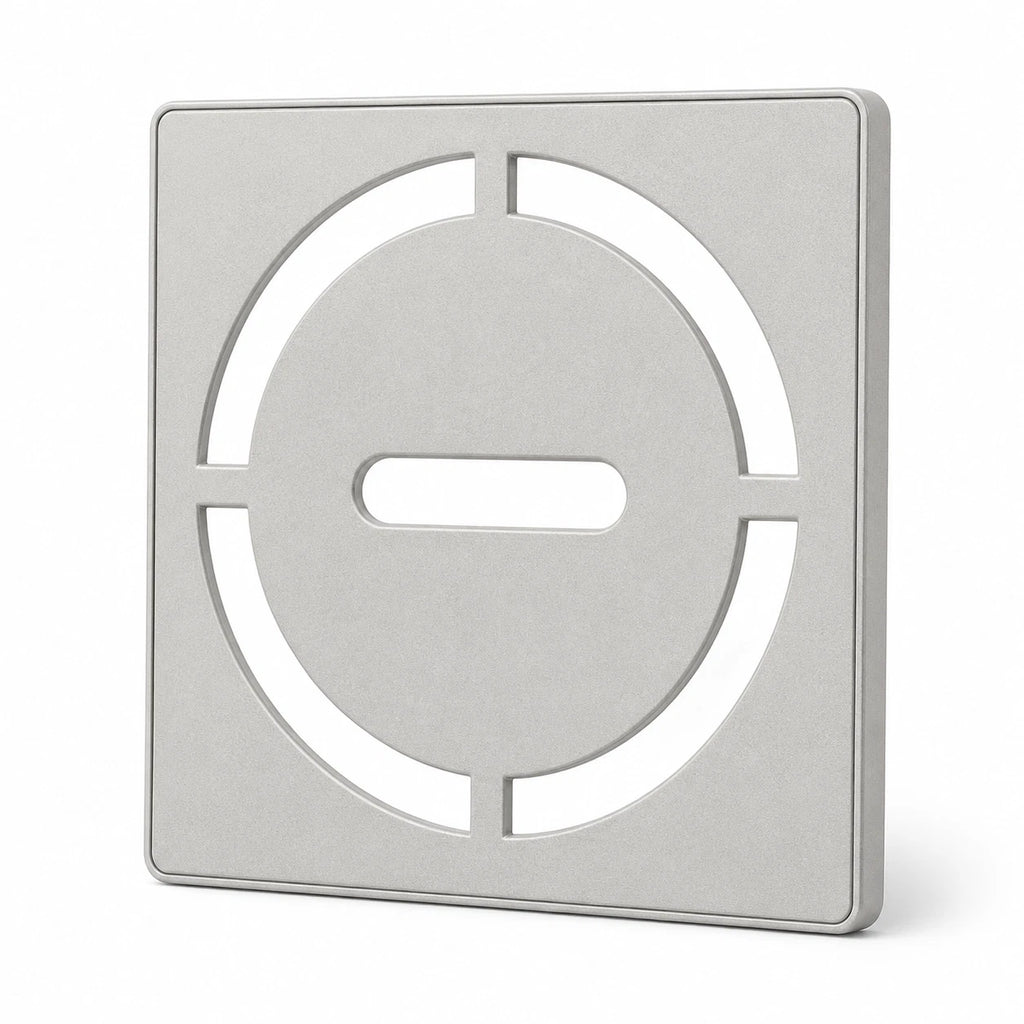

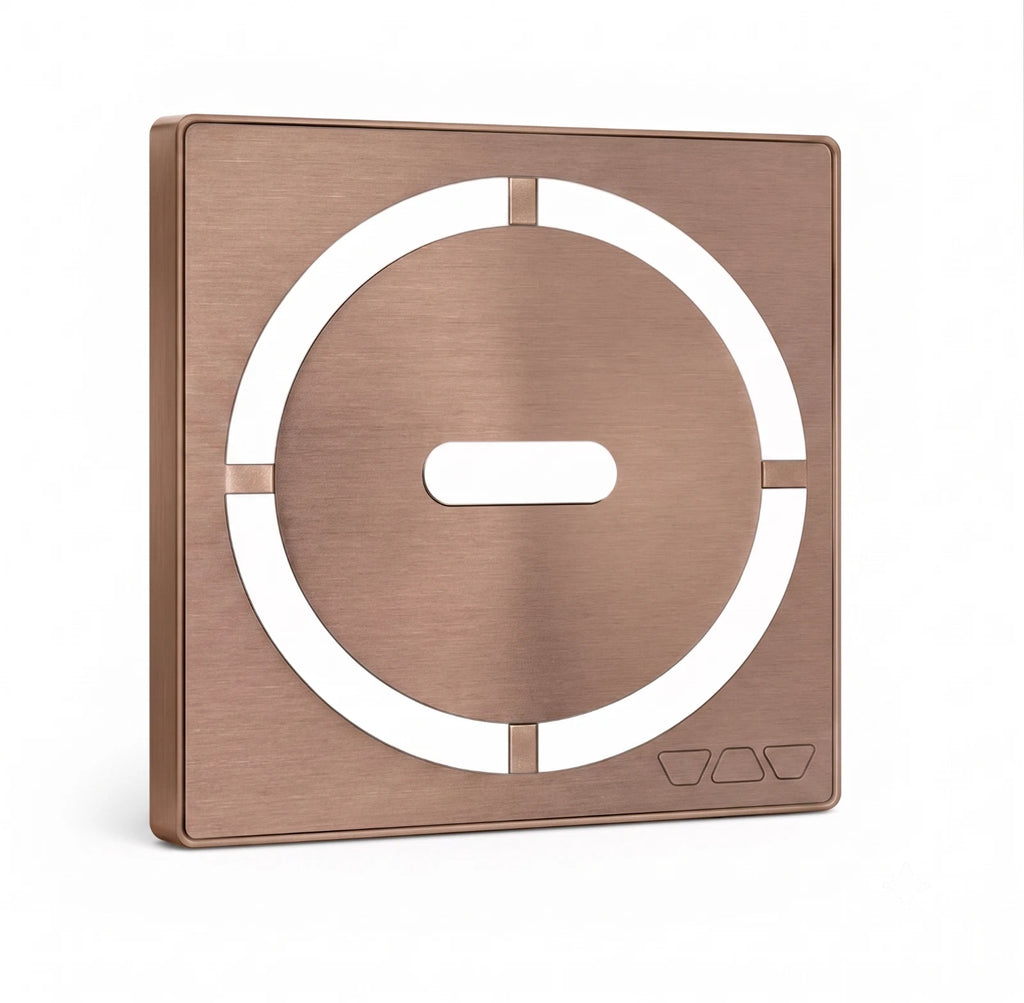

The 4" (100 mm) KERDI-DRAIN-STYLE grate assembly frame features a minimal reveal after installation. It is made of brushed stainless steel and can be combined with one of three grate design options: FLORAL (E), CURVE (F), or PURE (G). Various metallic and color-coated finishes are available. The 4" (100 mm) TILE grate is a square stainless steel plate with KERDI laminated on the surface to allow for bonding of ceramic or stone tile, which creates a virtually invisible drainage line. The 6" (150 mm) square and round stainless steel grate assembly frames feature an approximately 3/16" (5 mm) wide reveal after installation and can be combined with stainless steel grates in CLASSIC design or a square cleanout cover. Please note that 6" (150 mm) grate assemblies and grate assemblies used with the 5 -1/4" (133.4 mm) adaptor kits only allow vertical and tilt adjustment (no lateral adjustment).
