Schluter Systems DITRA Electric Radiant Floor Heating Kit with Uncoupling Membrane, WiFi Programmable Touchscreen Thermostat, Heating Cable (DHEKRTW12040)

Schluter DITRA HEAT Kit DHEKRTW12040 Contains:

• 1x DHEHK12027 DITRA-HEAT Cable (120 Volt, 26.7 Square Feet, 2.8 Amps, 338 Watts).
• 1x DHERT104/BW DITRA-HEAT-E-WIFI Touchscreen Programmable Thermostat.
• 5x DH5MA DITRA-HEAT Uncoupling Membrane Sheets, providing 42 Square Feet of total coverage.

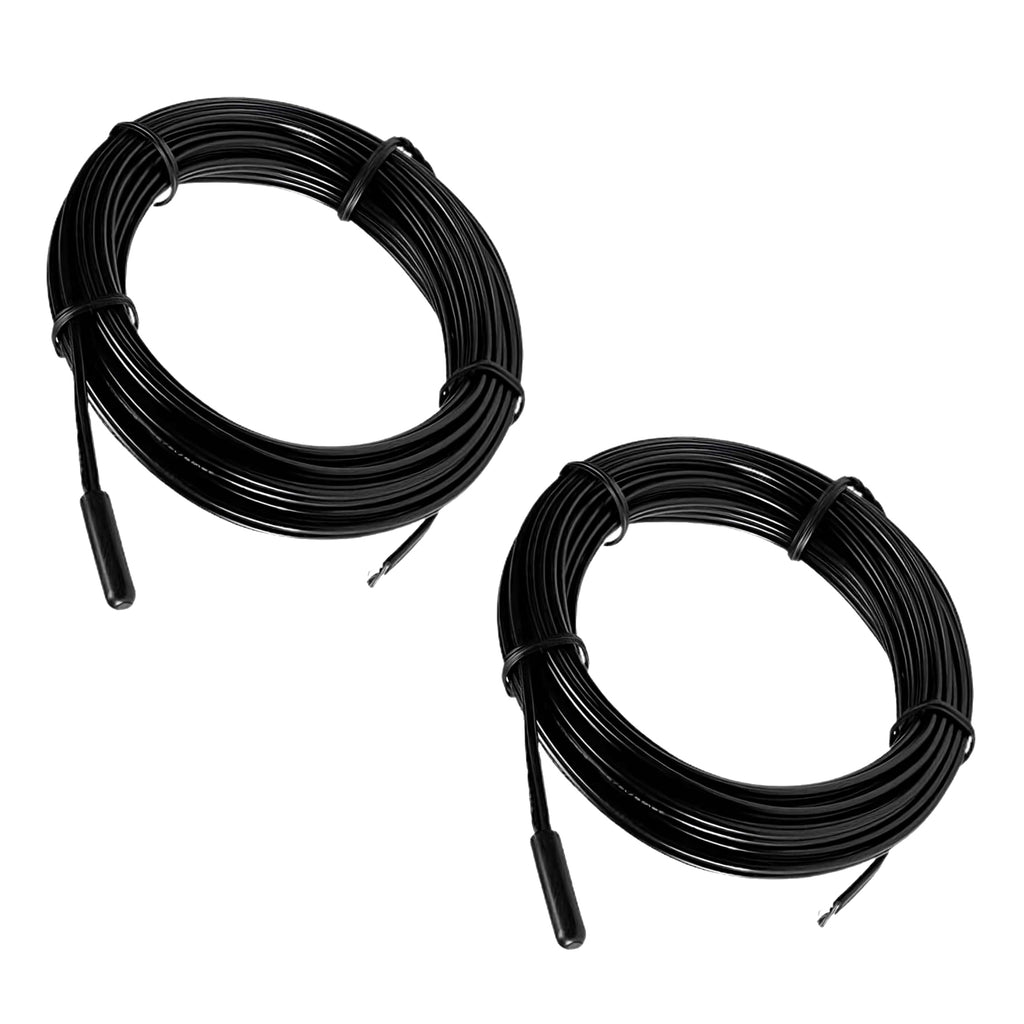

• 2x Floor sensors.
• Installation instructions.

Product Features:

• Premium electric radiant floor heating system designed for use with Schluter DITRA-HEAT uncoupling membrane
  Integrates underfloor heating, crack isolation, waterproofing, and vapor management in one reliable system
• Compatible with ceramic, porcelain, marble, natural stone, slate, mosaic, glass, quartzite, travertine, and engineered stone tiles
• Suitable for dry-area installations with alternate coverings (LVT, SPC, vinyl, laminate, engineered wood) using a self-leveling compound
• Approved for wet areas including bathrooms, showers, kitchens, laundry rooms, and steam rooms for maximum installation versatility
• Features snap-in-place cable design with dual sensors for advanced temperature control and programmable zoning
• Connects to Schluter DITRA-HEAT-E-WIFI thermostat for intuitive touchscreen operation and custom heating schedules
• Offers consistent, energy-efficient heat output with 3-stud cable spacing (12.75 W/sq ft) and enhanced coverage in cold zones
• Provides strong uncoupling to protect tile surfaces from subfloor movement, reducing the risk of tile cracks and grout failure
• Meets ANSI A118.12 for crack prevention; compatible with wood, plywood, OSB, cement board, and concrete subfloors
• Recommended for use with Schluter ALL-SET modified mortar (SETA50G/W) or SET unmodified mortar (SET50G/W) for maximum bond
• Backed by Schluter’s 15-year limited manufacturer warranty and trusted German engineering for long-lasting performance
• Schluter Ditra touchscreen WiFi programmable thermostat DHERT 104/BW is designed for both 120V and 240V systems. WiFi thermostat can be programmed wireless with phone app to warm flooring underlayment
• Kit comes with Schluter Ditra Heat DHE HK 120 27 electric cable (26.7 Sq Ft), including heated floor sensor. The cable is for 120V under floor heating system
• This kit comes with Schluter Ditra Heat DH5 MA uncoupling heat membrane (42 Sq Ft), which provides subfloor thermal insulation and is best used on concrete floors or heated bathrooms. Waterproofing and uncoupling features ensure a long-lasting installation
• Thermal break directs heat up into the tile rather than down into the subfloor, reducing energy waste and resulting in up to 70% faster floor heating when applied over concrete substrates
• This radiant floor heating system comes with 2 sensors to ensure floor safe installation

Product Description:

Schluter Systems DITRA-HEAT-E-HK Electric Radiant Floor Heat kit is a premium heating solution for creating luxurious warmth and comfort to your home or commercial space while maintaining uniform heat distribution and energy-efficient heated tile floors. Designed for use with Schluter DITRA-HEAT uncoupling membrane, this floor warming heating cable system integrates crack isolation, waterproofing, vapor management, and floor heating into one reliable solution.

Ideal for installation under ceramic tile, porcelain tile, marble tile, cement tile, natural stone tile, granite tile, mosaic tile, slate tile, limestone tile, quartzite tile, onyx tile, travertine tile, glass tile, and engineered stone tile, the system offers flexible layout options for both new construction and remodeling remodeling projects.

The Schluter®-DITRA-HEAT system is also suitable for applications with resilient floor coverings (e.g. LVT) and alternate floor coverings. In such installations, a cementitious self-leveling compound is required to fill the membrane, fully embed the heating cables to ensure efficient heat transfer and cable protection, and create a smooth, even substrate prior to the installation of engineered wood, wood, stone plastic composite (SPC), laminate flooring, vinyl tile, and luxury vinyl plank in dry spaces, without creating height differences in the floor—making it a great option for modern home upgrades.

Compatible with concrete subfloors, wood substrates, OSB, plywood floors, and cement backer boards, it is engineered to meet ANSI A118.12 crack prevention standards. The DITRA-HEAT-E-HK heating cable is approved for use in wet areas, meaning it can be safely installed in moisture-prone environments such as bathrooms and wet rooms. This makes it ideal for tile applications, including bathroom tile, shower tile, kitchen tile, and basement tile installations, as well as other tiled surfaces in both residential and commercial environments. It ensures safety and reliability in high-moisture environments, providing peace of mind alongside enhanced comfort.

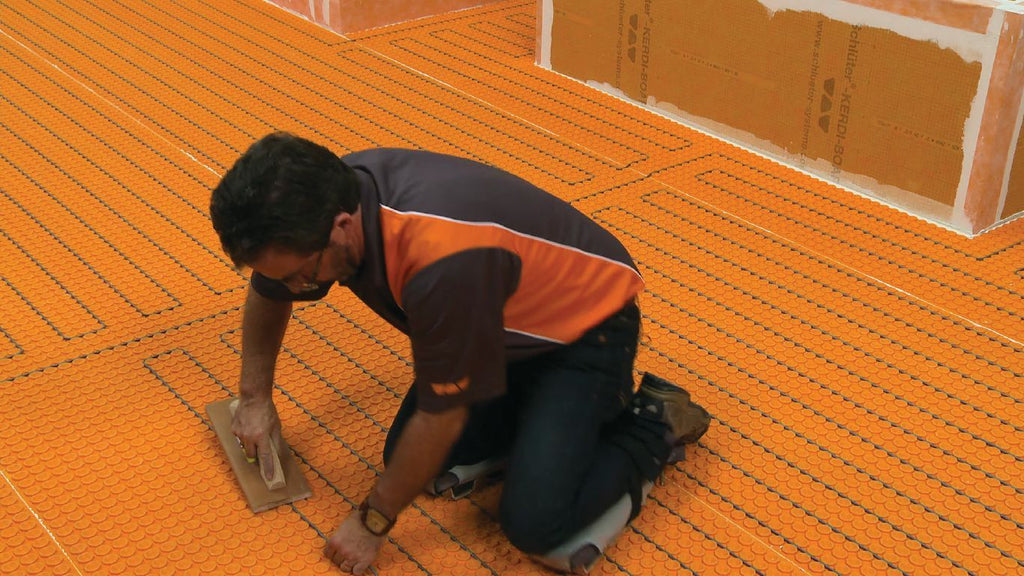

The heating cable easily snaps into place within the membrane channels and comes with two floor sensors for advanced temperature control. The system connects to Schluter DITRA-HEAT-E-WIFI DHERT104/BW  touchscreen programmable thermostat for precise programmable heating zones and underfloor temperature regulation.

This provides uniform heat distribution, effectively eliminating cold spots, and improves energy efficiency, making it ideal for installation in bathrooms, bedrooms, living rooms, foyers, entryways, dining rooms, laundry rooms, steam rooms, and sunrooms.

When paired with the DITRA-HEAT uncoupling heat membrane, it creates a strong tile bond and neutralizes differential movement stresses between the substrate and the tile covering, preventing movement-related damage such as tile cracking, grout line stress, and delamination of the tiled surface, ensuring a long-lasting installation with excellent load distribution capabilities and functioning as an effective uncoupling layer.

When installing the Schluter®-DITRA-HEAT-E-HK heating cables, the standard spacing is 3 studs between cable runs. Alternatively, in specific areas or across the entire floor, an alternating pattern of 3-stud and 2-stud intervals can be employed to increase heat output—beneficial over uninsulated or below-grade concrete subfloors—or to accommodate excess cable length when standard spacing doesn't align with the floor area.

To ensure a secure bond and long-lasting performance, Schluter recommends using ALL-SET modified thin-set mortar adhesive (SETA50G or SETA50W) over plywood and wood substrates or SET unmodified mortar (SET50G or SET50W) over concrete substrates.

This heating system is rated for high-performance floor coverage and is tested for durability in high-traffic areas like offices, retail spaces, hospitality, and healthcare facilities. Easy to install for both DIY users and professional tile installers, the Schluter DITRA-HEAT cable offers a comprehensive heated floor solution backed by Schluter's industry-leading German engineering.

Whether you're renovating your home or outfitting a commercial project, the DITRA-HEAT system provides consistent in-floor heating, crack isolation, and moisture protection—all in one innovative floor heating technology, an easy-to-install product designed to function as a reliable underlayment for any tile assembly while safeguarding your tile covering surfaces against potential subfloor movements and resisting shear stresses beneath your finished flooring. Trusted by professional contractors, this system delivers radiant heat and cozy warmth to any tiled space, combining performance with installation efficiency.
