Description

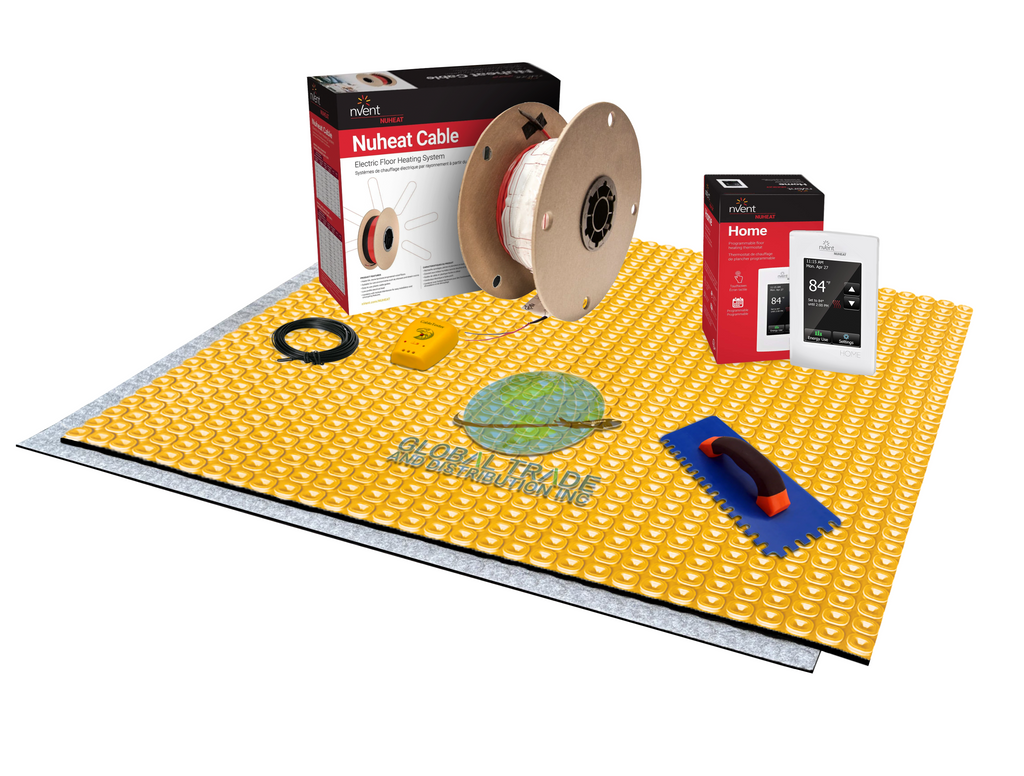

- CABLE: Nuheat Cable can be spaced on-site to provide 12-15 W/Sq Ft based on the desired wattage output requirements of the installation. Nuheat Cables are designed for kitchens, bathrooms, and other spaces where on-site adjustments are necessary to provide the desired heating coverage. Also approved for use in wet areas including shower floors and other areas.
- THERMOSTAT: nVent Nuheat AC0056 Home Touchscreen Programmable thermostat features a 3.5" color touchscreen display that homeowners can use to access the super-intuitive user interface and energy usage information. The thermostat features dual voltage compatibility (120 V and 240 V), a physical on/off switch, and has built-in Class A GFCI protection. 2x AC0008 Temperature Floor Sensing Probes included one with the thermostat and one extra.
- DITRA HEAT DUO MEMBRANE -polypropylene thermal break membrane with a cutback stud structure and an anchoring fleece laminated to the underside. This membrane is designed to secure the DITRA-HEAT-E-HK electric floor heating cables and provide uncoupling, waterproofing, vapor management and load support to ensure a long-lasting tile installation.
- ENERGY EFFICIENT - The thermal break directs heat up into the tile rather than down into the subfloor, reducing energy waste and resulting in up to 70% faster floor heating when applied over concrete substrates.
- SAFETY: SunTouch LoudMouth Monitor electric fault indicator sounds an alarm if the heating wire is cut or damaged, identifying a problem with the installation before the heat wire is tiled over. Suntouch plastic 3/8" x 1/2" U-notch cable trowel is designed specifically for heat cables installation and eliminates the risk of damaging the heating cable while applying mortar.
Nuheat Electric Radiant Floor Heating system comes in multiple sizes, it is allowed installers to customize the layout instantly making adjustments to the floor heating coverage for any room. The flexible installation method lets you heat floors with curves or angles and work around obstructions like floor heating vents. Thinnest power lead and connection joint keeps your floor profile low and eliminates notching of sub floor. Zero EMF cable design uses 2 conductors twisted for active EMF cancelling Halfway point is marked on each cable so you can adjust if needed. DITRA-HEAT-DUO membrane ensures a quick and simple assembly by providing heating, uncoupling, and a thermal break, all in one revolutionary product. The thermal break directs heat up into the tile rather than down into the subfloor, resulting in tiled floors that warm up to 70% faster over concrete substrates. By preventing the loss of heat to the subfloor, DITRA-HEAT-DUO provides considerable energy savings and complete comfort even with tiled floors that are traditionally cold when installed over concrete.
| Cable | Membrane |
| 8 Sq Ft | 16.8 Sq Ft |
| 12 Sq Ft | 16.8 Sq Ft |
| 15 Sq Ft | 33.6 Sq Ft |
| 20 Sq Ft | 42 Sq Ft |
| 25 Sq Ft | 42 Sq Ft |
| 30 Sq Ft | 50.4 Sq Ft |
| 35 Sq Ft | 50.4 Sq Ft |
| 40 Sq Ft | 58.8 Sq Ft |
| 45 Sq Ft | 75.6 Sq Ft |
| 50 Sq Ft | 75.6 Sq Ft |
| 55 Sq Ft | 84 Sq Ft |
| 60 Sq Ft | 84 Sq Ft |
| 65 Sq Ft | 92.4 Sq Ft |
| 70 Sq Ft | 108 Sq Ft |
| 80 Sq Ft | 116.4 Sq Ft |
| 85 Sq Ft | 116.4 Sq Ft |
| 90 Sq Ft | 124.8 Sq Ft |
| 95 Sq Ft | 124.8 Sq Ft |
| 100 Sq Ft | 133.2 Sq Ft |
| 110 Sq Ft | 150 Sq Ft |
| 120 Sq Ft | 150 Sq Ft |
| 135 Sq Ft | 158.4 Sq Ft |
| 145 Sq Ft | 166.8 Sq Ft |
| 160 Sq Ft | 192 Sq Ft |
| 170 Sq Ft | 200.4 Sq Ft |
| 190 Sq Ft | 232.8 Sq Ft |
| 215 Sq Ft | 266.4 Sq Ft |
| 240 Sq Ft | 324 Sq Ft |
