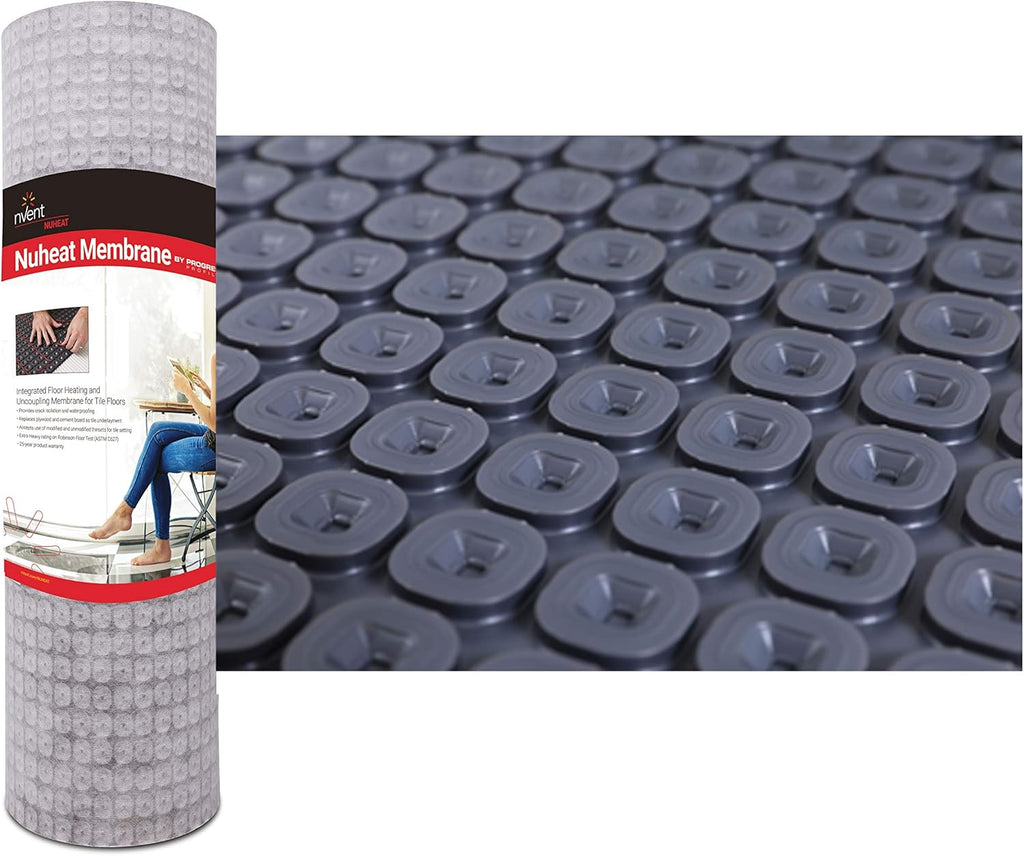

Chemelex nVent Nuheat AC0106 Uncoupling Membrane 54 Sq Ft Roll (3' 3" x 16' 5") Non-Woven Polypropylene Heating Pad, Waterproof and Anti-Fracture Floor Underlayment for Underfloor Heating System

Product Features:

• Engineered for seamless integration with nVent NuHeat electric floor heating cables as part of the Chemelex Heating System.
• Provides exceptional uncoupling, crack isolation, and waterproofing to protect tile and grout from substrate movement and moisture damage.
• Eliminates the need for a second layer of plywood or cement backer board, reducing floor buildup and installation time.
• Evenly distributes radiant floor heat across tiled surfaces for consistent comfort.
• Compatible with a wide range of floor coverings including ceramic tile, porcelain tile, marble, granite, natural stone, engineered stone, vinyl tile, cement tile, travertine, slate, limestone, sandstone, quartzite, mosaic tile, and glass tile.
• Ideal for wet areas such as bathrooms, kitchens, steam rooms, shower floors, laundry rooms, basements, and entryways.
• Rated “Extra Heavy” by the Robinson Floor Test (ASTM C627) for commercial-grade durability in high-traffic areas such as hotels, restaurants, offices, and retail spaces.
• Meets ANSI A118.12 standard for high-performance crack resistance.
• 1/4" (0.22") low-profile design minimizes finished floor height while maintaining strength and flexibility.
• Polypropylene construction with square-shaped columns securely locks NuHeat heating cable in place without cutting or modification.
• Functions as a vapor management layer, allowing moisture to escape during curing and ensuring long-lasting tile adhesion.
• Compatible with top-tier mortars including Mapei Keraflex RS, Schluter ALL-SET, LATICRETE 254 Platinum, Custom Building Products VersaBond-LFT, TEC Full Flex, ARDEX X 5, and ARDEX X 77 (ensure A118.11 compliance over plywood/OSB).
• Suitable for DIY and professional installation, accommodating straight, curved, or angled floor layouts.
• Can be installed over concrete, plywood, OSB, gypsum underlayments, cement backer board, and other approved substrates.

Product Description:

The NUMEM054 NuHeat Membrane is a tile underlayment and uncoupling system specifically engineered to integrate seamlessly with nVent NuHeat electric floor heating cables. It offers outstanding uncoupling and waterproofing properties, helping to prevent tile cracking and substrate movement. When installed in combination with nVent NuHeat heating cables and a thermostat, it creates a reliable, energy-efficient radiant floor heating solution. The system provides soothing heat to tile and stone floors. It is energy-efficient and easy to install. Chemelex NuHeat floor mat is a tile underlayment that can be installed over the entire subfloor for uncoupling, crack isolation (crack in the floor prevention), and waterproofing purposes.

The Chemelex NuHeat Membrane eliminates the need for a second layer of plywood or cement backer board in most tile installations, thereby reducing floor buildup. It ensures even floor heat distribution across tiled surfaces and is designed for the quick and easy installation of nVent NuHeat electric heating cables, which now part of the rebranded Chemelex Heating System.

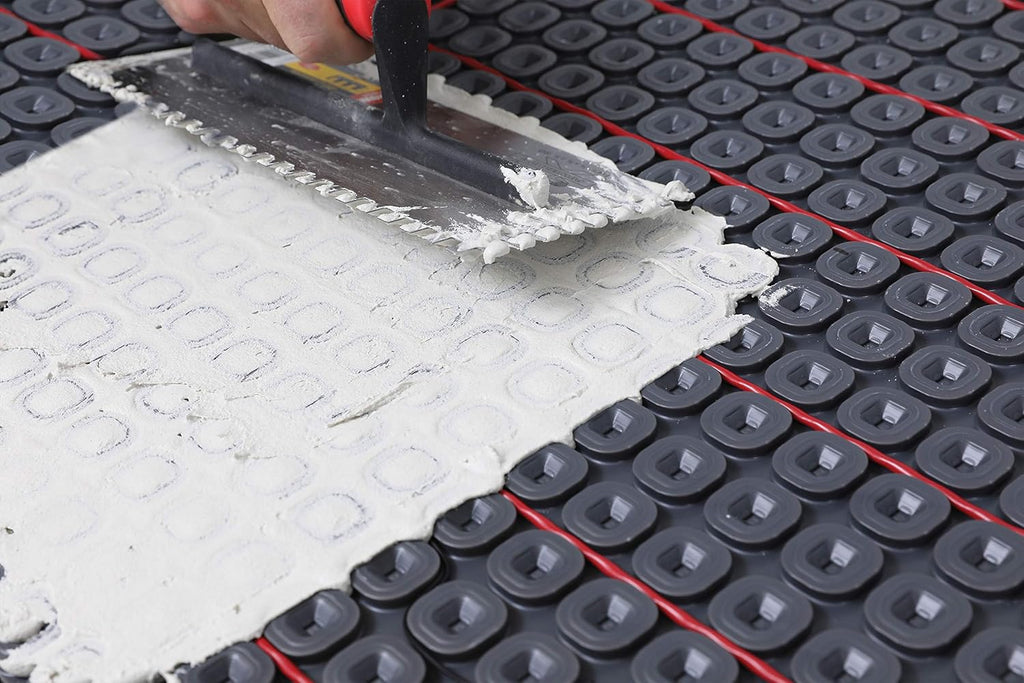

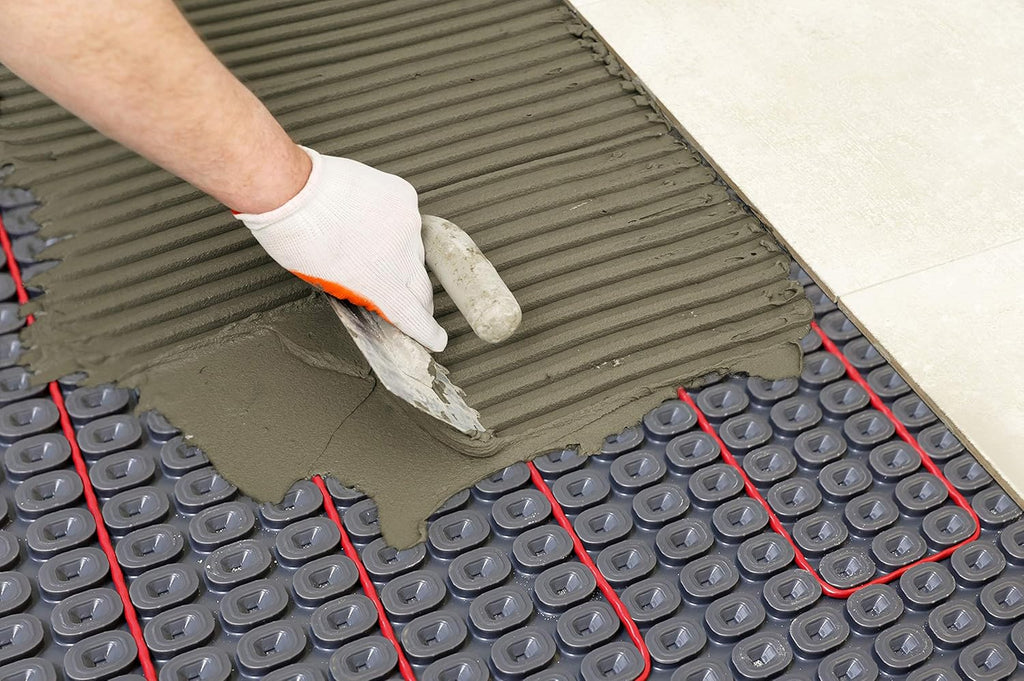

Chemelex NuHeat mat serves as a flexible layer between the subfloor and your flooring assembly, providing a stable base that is bonded to the subfloor with thin-set mortar adhesive. Once this flooring underlayment for tile has cured, it will fully support the tile installation above by absorbing substrate movement and preventing tile cracking. This infloor uncoupling layer is effective in neutralizing tension, delamination, and lateral stress from transferring to tile covering surfaces, ensuring long-term structural integrity over tiled subfloors.

Suitable for various floor tiles, including ceramic tile, porcelain tile, vinyl tile, cement tile, granite tile, marble tile, travertine tile, slate tile, limestone tile, sandstone tile, onyx tile, quartzite tile, mosaic tile, glass tile, concrete blocks, engineered stone tiles or natural stone tiles installed directly on top of it. Also suitable for linoleum tile applications, carpet tile, vinyl flooring, and stone flooring, the Chemelex NuHeat Uncoupling Membrane provides a reliable foundation. Designed for use with underfloor heating systems and underfloor temperature regulation, this underlayment supports a comfortable, energy-efficient, and long-lasting floor system.

The Chemelex NuHeat uncoupling and waterproofing membrane achieves a 'high-performance' rating under the ANSI A118.12 standard for system crack resistance test and 'Extra Heavy' rating in the Robinson Floor Test (ASTM C627), indicating its capability to withstand high-traffic environments. This makes it ideal for commercial spaces such as hotels, restaurants, retail stores, office buildings, shopping malls, healthcare facilities, and industrial kitchens, providing long-lasting protection and superior waterproofing in commercial and industrial settings, ensuring a strong and durable flooring system for years to come. It is rated for a maximum ambient temperature of 194°F (90°C). The Chemelex NuHeat membrane (nVent NuHeat underfloor mat) is available in multiple sizes, making it suitable for professional home improvement or DIY projects of all scopes.

The Chemelex NuHeat membrane underlayment is an excellent option for your remodeling and home renovation needs and enhances room décor, bathroom décor, kitchen décor, and overall home décor. It's a robust tile underlayment membrane (heated floor mats) that makes it usable in your shower, bathroom, hot tub and bathtub surround, kitchen, laundry room, steam room, basement, entryway, hallway, dining room, and other wet areas where potential water leaks (water damage) are a concern. Perfect for bathroom tile, kitchen tile, and shower tile installations, it helps ensure reliable, long-lasting performance in moisture-prone areas.

The Chemelex NuHeat heating system allows you to create a bathroom heated floor and a warm, inviting space in your living room. The membrane's design facilitates easy on-site adjustments, accommodating complex floorplans with curves and angles. The NUMEM054 membrane is 1/4 inch thick, minimizing the finished floor height, while its durable and flexible design reduces installation time, providing a seamless, professional finish.

The Chemelex NuHeat uncoupling membrane also acts as a crack prevention barrier that preserves the surface and integrity of the tile and grout. It also functions as a vapor management solution in ceramic tile and stone installations and absorbs shear stress from subfloor movement, and prevents damage to your floor tile or grout.

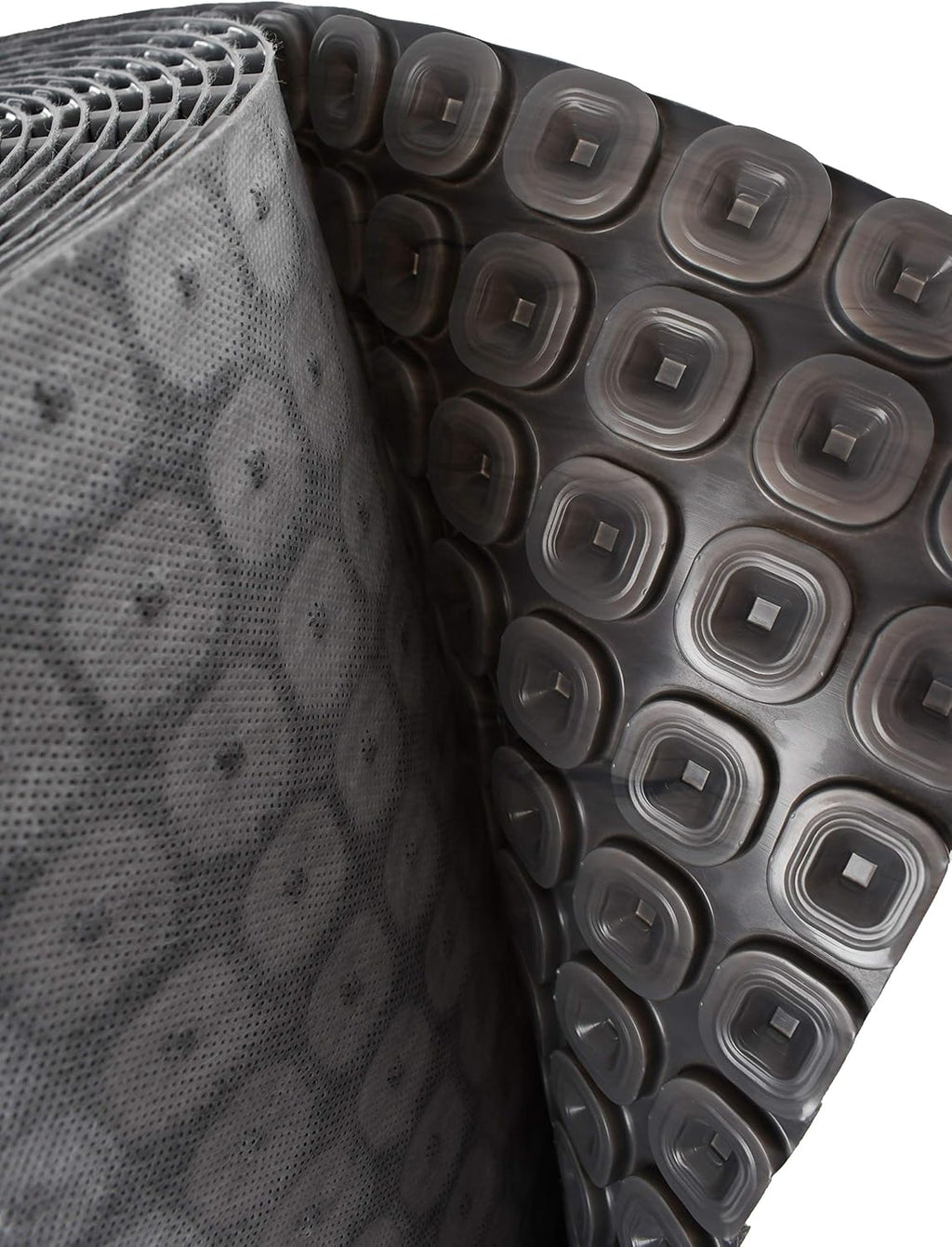

The polypropylene plastic layer features square-shaped columns that form channels specifically designed to embed and securely hold the nVent NuHeat Cable in place, allowing precise temperature regulation of your tiled floors through the Chemelex thermostat.

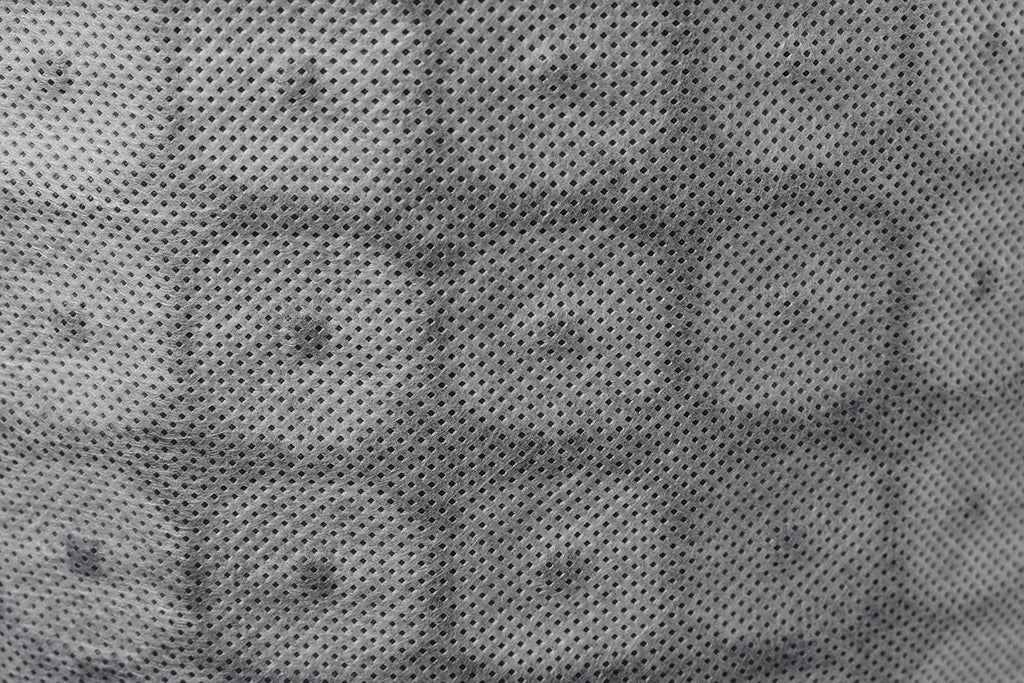

The shape of Chemelex NuHeat Membrane also functions as a vapor management system that allows moisture to escape from the substrate during the curing process. Its polypropylene layer is heat-welded to a non-woven polypropylene fabric that absorbs thinset and creates a strong bond to the subfloor. Compatible subfloors include concrete, plywood, OSB, wood, concrete backer board, gypsum underlayments, and other approved substrates.
