Profilitec Showertec Waterproof and Vapor-Tight Lightweight Shower Wall Boards with Durable, Rigid Polypropylene Construction and Tile-Ready Surface, 48" x 32" x 1/2" (STBO122X81)

Product Features:

• Fleece-Bonded Polypropylene Panel: High-performance polypropylene construction wall panel with non-woven fleece webbing on both sides for superior mortar adhesion.
• Waterproof Thermal Protection: Fully waterproof, vapor-tight, and thermally insulating, making it ideal for wet zones and high-humidity environments while being approved for both residential and commercial applications.
• Fast Multi-Surface Installation: Profilitec Showertec waterproof shower wall panels are compatible with wood studs, metal framing, concrete, masonry, brick and installs using standard self-tapping drywall screws saving you time and heavy lifting.
• Flexible Washer-Free Mounting: Supports fast vertical or horizontal mounting without washers, simplifying installation while improving handling and overall jobsite efficiency.
• Strong and Precisely Cuttable: Internal cell structure adds strength, allowing easy, precise cutting for benches and niches in a compact, lightweight 48" x 32" x 1/2" panel.

• Lightweight Gridline Cutting: Lightweight and easy to handle with printed 10 mm gridlines for fast, precise cutting using a utility knife or jigsaw with minimal residue.
• Convenient Shower Panel Size: Available in a convenient 48" x 32" (122 x 81 cm) size with 1/2" (12.6 mm) thickness, ideal for efficient shower wall installations.
• Versatile Substrate Compatibility: Compatible with wood studs, metal framing, concrete, masonry, and brick; installs using standard self-tapping drywall screws.
• Vertical or Horizontal Installation: Supports vertical and horizontal mounting with no washers required, helping reduce hardware costs and installation time.
• Universal Tile Compatibility: Designed for use with all tile types—porcelain, ceramic, marble, granite, onyx, mosaic, and glass tile—supporting versatile shower wall designs.
• Wet-Area Application Versatility: Ideal for showers, steam rooms, walk-in showers, curbless shower floors, spa rooms, wet rooms, and bathtub surrounds.

• Certified Flame and Smoke Resistance: Meets ANSI A118.10 and TCNA guidelines; rated for flame and smoke resistance (ASTM E84 and NFPA 286 compliant).
• ADA and Wet-Room Applications: Ideal for showers, steam rooms, walk-in showers, curbless shower floors, ADA installations, spa rooms, and other wet room applications.
• Eco-Friendly Recyclable Construction: Eco-friendly and fully recyclable; contains no fiberglass, adhesives, or harmful chemicals—perfect for green building initiatives.

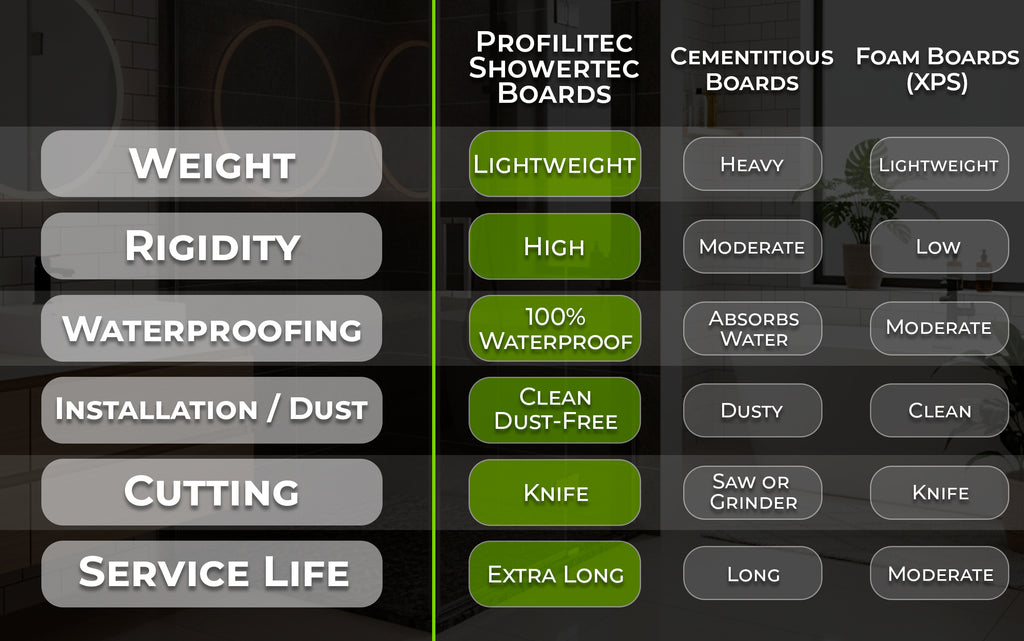

• Lightweight Backer Board Alternative: A trusted alternative to traditional cement backer boards, foam backer boards, and drywall, offering unmatched structural reliability and long-term waterproofing integrity while weighing at just 5.8 lb (2.5kg) per panel.

Product Description:

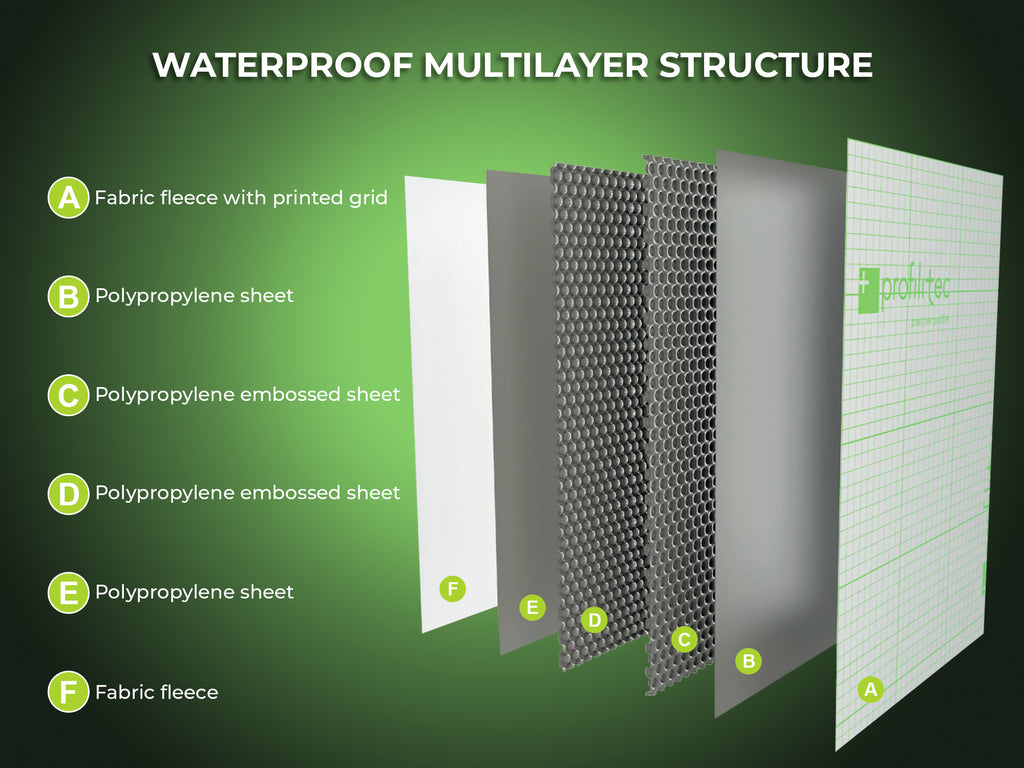

The Profilitec Showertec STBO waterproof polypropylene foam board is a premium professional-grade tile backer and substrate panel designed for highly versatile waterproofing wet areas in both residential and commercial settings. Constructed with a multilayer, heat-bonded extruded polypropylene foam core and laminated non‑woven fleece webbing on both sides, it offers a fully waterproof board, vapor-tight, mold-resistant, and thermally insulating solution ideal for use in showers, bathrooms, steam rooms, spa rooms, saunas, and poolside wet zones. This waterproof construction panel features a unique internal cell-structured design that enhances high compressive strength, allows for easy scoring to create custom shapes like construction board for benches and niches, and ensures zero residue is left when cut. The printed 10 mm grid pattern ensures precise cutting and layout alignment using a standard utility knife or jigsaw. Lightweight and dimensionally stable, it eliminates the need for heavy cement board, reducing labor time and simplifying handling on the jobsite.

The STBO board rigid polypropylene core contributes to its exceptional dimensional stability and load-bearing capacity, making it suitable for use in demanding environments. It comes in a convenient size of 48" x 32" (122 x 81 cm) with consistent 1/2" (12.6 mm) thickness and is compatible with installation over wood studs, metal framing, concrete, brick, and masonry. It installs quickly using 1¼" self-tapping drywall screws without washers and supports both vertical and horizontal mounting. The dual fleece layers ensure a strong bond with modified thin-set mortar adhesive, guaranteeing optimal adhesion and a secure and long-lasting tile bond, making this board ideal for a wide range of tile and stone finishes, including ceramic, porcelain, granite, marble, mosaic, travertine, slate, resin-backed tile, large-format tile, glass, and soft natural stones like onyx.

It complies with ANSI and TCNA standards for vapor-resistant substrate and bonded waterproof membrane systems and passes ASTM E84 and NFPA 286 for flame and smoke resistance, with a low water vapor permeance of 0.0009 perms and thermal R-value around 0.984. This makes it suitable for high-moisture and high-temperature environments, including steam showers, commercial washrooms, tub surrounds, walk-in showers, curbless shower floors, ADA barrier-free installations, gyms, hotels, fitness centers, luxury homes, and wet room applications. It's also environmentally friendly and fully recyclable, free of fiberglass, paper, adhesives, and harmful chemicals, making it an excellent choice for green building projects and sustainable construction. The STBO board is fully compatible with the complete Profilitec Showertec system, including FOILTEC waterproofing strips, FIXXTEC sealant, preformed inside and outside corners, linear drains, shower trays, and curbs.

Whether you're working on a new build, a bathroom renovation, or a DIY project, the Profilitec STBO waterproof foam backer board offers professionals seeking dependable waterproofing solutions a preferred choice that simplifies waterproofing installation and enhances overall project efficiency. Trusted by tile contractors across North America, this board is an essential component in tile installation for shower wall panel use, tile underlayment, and underlayment systems, delivering a reliable and modern solution that ensures long-term durability and superior performance. It is a high-performance alternative to traditional cement backer boards and traditional tile backer boards, offering exceptional structural reliability. Architects and builders choose this product for its fast installation, easy to handle compact size, and long-term waterproofing integrity across every project.

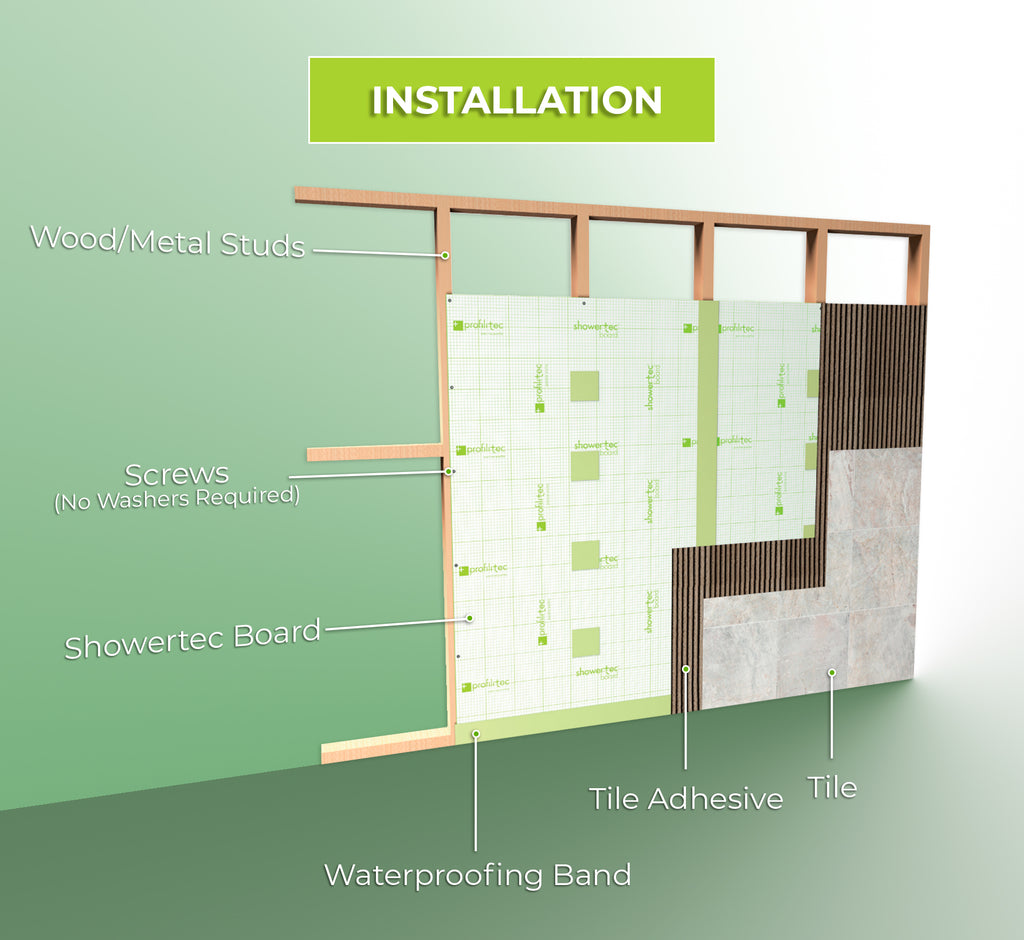

Our eco-friendly indoor waterproofing systems provide a highly efficient and environmentally responsible way to protect your shower from water leaks, floor and wall damage, moisture-related mold, and even flooding. For installation, begin by confirming that any bonded substrate is clean, dry, structurally sound, and free from debris, sealants, or coatings that could interfere with adhesion. Plan the shower wall panel layout so adjoining boards fit closely together, then use a straight edge while cutting to maintain clean, accurate panel lines. On uneven brick, concrete, or masonry walls, spot-bonding can help establish a perfectly plumb, tile-ready surface, while framed wall installations should be secured with screws spaced approximately 12" apart along the wood studs. After fastening, seal every board joint with FOILTEC waterproofing band embedded in modified thin-set mortar, smooth away wrinkles or trapped air, and protect screw-head penetrations with FIXXTEC adhesive sealant. Necessary accessories, including a shower niche, can then be installed before applying the appropriate tile adhesive and selected bathroom tile wall finish. This organized installation method makes the board an effective choice for bathtub waterproofing, shower surround construction, waterproof shower wall panels, bathroom shower waterproofing, and tile backer board applications while creating a secure foundation for a durable, professionally finished tile bathroom shower.
